Ace FMC-200F-HYD-304 Centrifugal Pump | FMC-200F-HYD-304

3-5 day lead time
38.00 LBS
Calculated at Checkout
Product Documentation:
Download PDF
Instruction Manual:
Download PDF

Ace FMC-200F-HYD-304 Centrifugal Pump | FMC200FHYD304

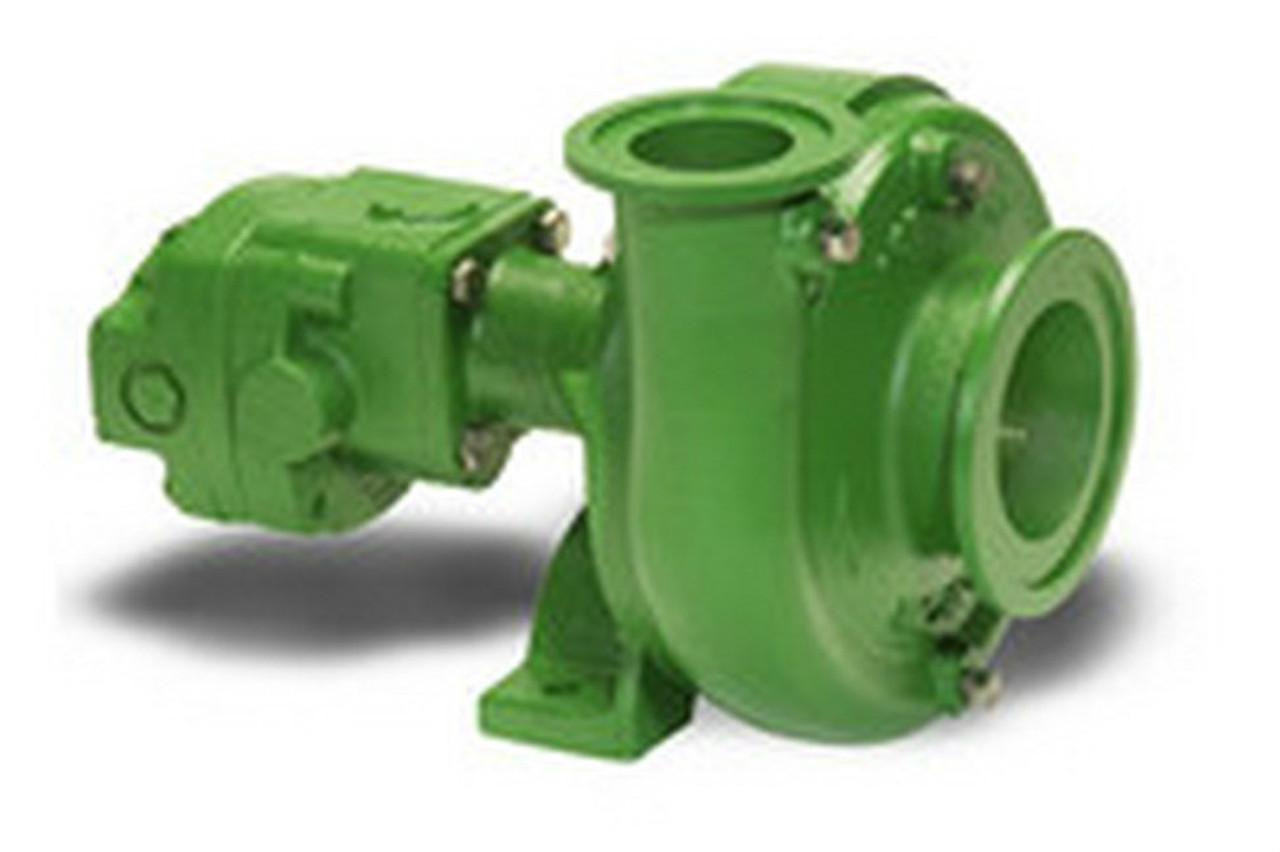

Ace Cast Iron Hydraulic Driven Centrifugal Pump

Centrifugal pump design provides great resistance to abrasive solutions and extra flow for agitation.  The advantages of the hydraulic motor driven pump are mounting versatility, customized performance and ease of maintenance.  All hydraulic driven pumps are equipped with a stainless steel shaft and wear ring for excellent corrosion resistance.


  • Max flow: 240 gpm
  • Max pressure: 120 psi
  • Port sizes: 300 Series Standard Port Flange Suction, 220 Series Full Port Flange Discharge
  • Pump material: Cast Iron
  • Hydraulic motor: Requires 13 gpm hydraulic flow on closed and open systems
  • Seal material: Viton® Carbon/Ceramic (Optional Severe Duty Silicon Carbide available)
  • Impeller material:  Chemical Resistant Valox® (Optional  Cast Iron)
