Pioneer 4200 Series Female Quick Coupler | 4250-4


$22.12
SKU:
4250-4
UPC:
08250600163
Weight:
0.81 LBS
Shipping:
Calculated at Checkout
Agricultural Couplings:
Quick Couplers/Couplings
Pioneer 4250-4 Safety Instructions:
Safety Instructions
Pioneer 4250-4 Fluid Compatibility Chart:
Fluid Compatibility Chart

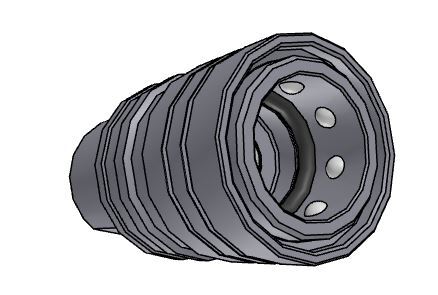

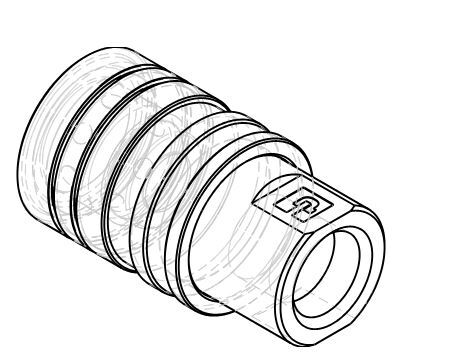

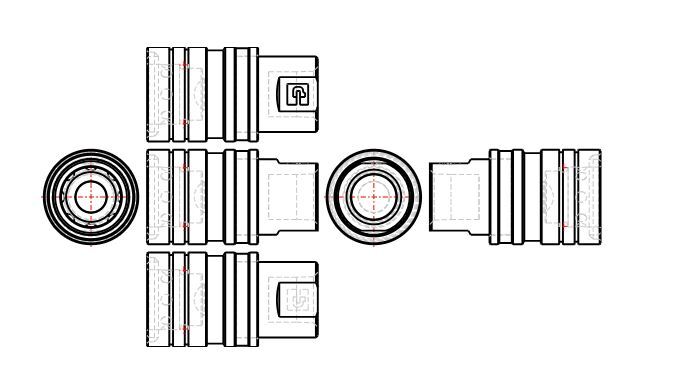

Pioneer 4200 Series Female Quick Coupler | 4250-4

The 4200 Series brings to the industry a proven design for use on agricultural machinery and other rugged applications where a breakaway feature is desirable.

4200 Series Couplers (hydraulic) 3000 psi, connect with 1/2"" 8010 Series Nipples (ISO 5675, Pioneer male tips) and 4000 Series Nipples (3/8"" size).
Parker's 4200 Series are double shut-off quick couplings and the 1/2"" size is compatible with 5001-4 and 5006-4 breakaway clamps. Couplers have push to connect operation and a push/pull breakaway sleeve. When the coupler is clamp or bulkhead mounted it is ideal for use in applications where a breakaway feature is desirable.


Features:

  • Accepts ISO 5675 universal tips
  • Grooves in sleeve to accommodate retaining rings for bulkhead mounting
  • One-handed push-to-connect operation when coupler is clamp mounted
  • 1/2” body size couplers are compatible with 5001-4 and 5006-4 breakaway clamps
  • Critical parts are induction hardened
  • Ball and poppet valve options
  • Protective zinc plating with clear trivalent chromate finish
  • For use with 8010-4 Male Tips
  • Push - pull breakaway sleeve allows coupler to disconnect in the case of an implement breakaway
  • Critical parts are hardened for durability

Applications Include:

  • Hydraulic Loaders
  • Add-on hydraulic circuits
  • Implement breakaway
  • Hydraulic tools
  • Tractors / mobile equipment

Specifications:

  • Body Size: 1/2"
  • Coupler Part Number: 4250-4
  • Port End: 1/2-14 NPTF
  • Valve Type: Ball
  • Length: 2.68"
  • Largest Diameter: 1.50"
  • Maximum Operating Pressure: 3000 psi
  • Flow Rate: 12 gal/min
  • Valve Style: Ball
  • Seal Material: Nitrile
  • Media: Hydraulic
  • Specifications Met: ISO 5675
  • Coupling Half: Coupler
  • Minimum Operating Temperature: -40 °F
  • Maximum Operating Temperature: 250 °F
  • Sleeve Type: Push-pull, Breakaway Sleeve
  • Lock Type: Locking Balls
  • Body Material: Steel
  • Thread Size: Female
  • Connection Type: NPTF
  • Plating Type: Zinc with Clear Trivalent Chromate
  • Application: Hydraulics, General Purpose
  • Wrench Flats: 0.94mm
  • Weight(lbs): 0.55
  • Complete Coupling Part Number: 4200-4
  • Connection Thread Size (inch):1/2 - 14

Technical Characteristics:

  • Sizes: 3/8” & 1/2”
  • Material: Steel
  • Port Ends: Female NPTF, Female ORB
  • Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene

Markets:

  • Agriculture
  • Mobile Equipment
  • Construction

FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE.

  • This document and other information from Parker-Hannifin Corporation, its subsidiaries and authorized distributors provide product or system options for further investigation by users having technical expertise.
  • The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors.
  • To the extent that Parker or its subsidiaries or authorized distributors provide component or system options based upon data or specifications provided by the user, the user is responsible for determining that such data and specifications are suitable and sufficient for all applications and reasonably foreseeable uses of the components or systems.
