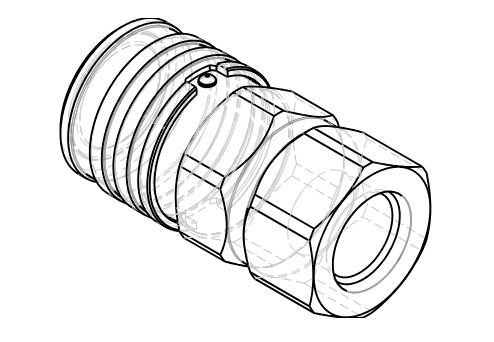

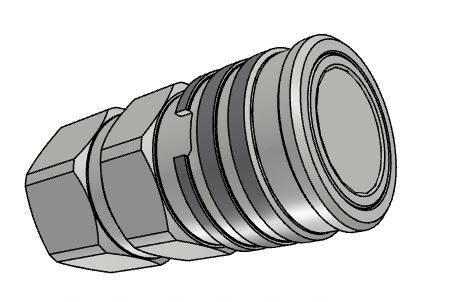

Pioneer FEM Series Non-Spill Hydraulic Coupler | FEM-501-10FO
FEM Series couplings meet or exceed ISO 16028 design and performance requirements. The flush valves eliminate spillage and air inclusion when connecting and disconnecting. Coupler and nipple bodies have a modular design with increased flexibility for end port options.
FEM and FEC Series Nipples (hydraulic) up to 5000 psi, connect with FEM Series Couplers. All FEM and FEC Series parts meet or exceed design and performance requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards.
Features:
- Global interchangeability with other ISO 16028 compliant couplings
- Hardened steel sleeves and nipple bodies
- Blow-out resistant seal
- Protective zinc nickel plating with clear trivalent chromate finish
- Non-spill, flat face valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage.
- Flat face valves minimize the amount of air that can enter the system when connecting fluid lines, thus preventing accelerated wear of the system's components.
- Male bulkhead fitting ends for panel or plate mounting options
- FEC nipples provide the ability to connect under residual pressure caused by thermal expansion.

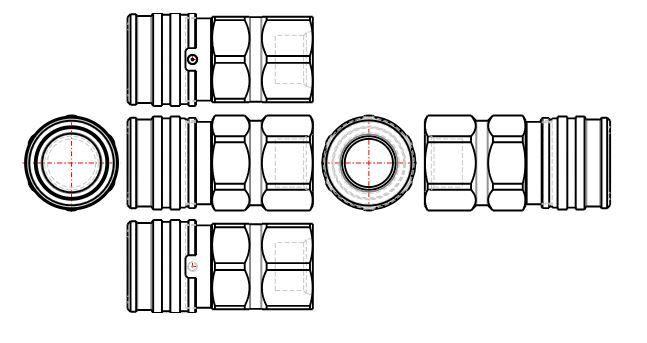

Specifications:
- Body Size: 1/2"
- Nipple Part Number: FEM-501-10FO
- Port End: 7/8-14 UNF
- Length: 3.08"
- Coupled Length (when connected to corresponding nipple): 5.38"
- Largest Diameter: 1.59"
- Wrench Flats: 36mm
- Weight(lbs): 1.12
- Coupling Half: Female Coupler
- Specifications Met: ISO 16028, ISO 16028, HTMA
- Maximum Operating Pressure: 5000
- Maximum Operating Temperature: 250 °F, 110 °C
- Valve Type: Non-spill
- Application: Hydraulics, n/a, non-spill
- Minimum Operating Temperature: -40 °F, -40 °C
- Connection Type: Female UNF
- Product Type: Push to Connect, Quick coupling
- Flow Rate: 12 gal/min, 55 L/min
- Body Material: Steel
- Plating Type: Zinc Nickel, Zink Nickel
- Seal Material: Polyurethane/Nitrile, NBR
Applications Include:
- Skid loader attachments
- Hydraulic tools
- Construction equipment attachments
- Industrial hydraulic lines
- Agricultural implements
- Coolant fill and drain lines - Contact QCD for a brass, FEM style drain port nipple that is recommended for use by the Technology and Maintenance Council of the American Trucking Association, TMC Recommended Practice 353
Materials of Construction
- Body: Steel
- Finish: Chromium-6 Free plating
- Valve: Flush face valving
- Seal: Polyurethane or Nitrite; size dependent
Technical Characteristics:

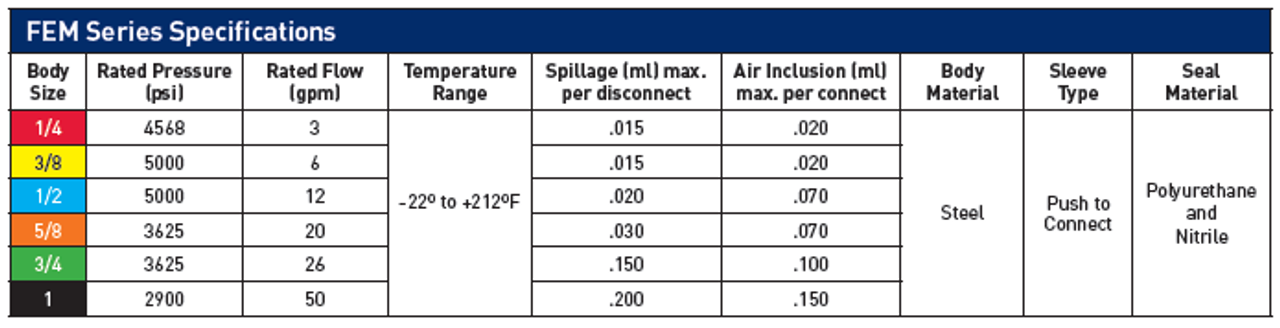

- FEM Sizes: 1/4” – 1”
- FEC (Connect Under Pressure) Sizes: 1/2", 5/8", 3/4"
- Materials: Steel
- Port Ends: Female NPSF, Female ORB, Male Bulkhead Flare, Male Bulkhead Face Seal
Markets:
- Industrial
- Construction
- Utility
- Agriculture
