Ace Pumps 200 GPM Centrifugal Pump | FMC-200-HYD-304

Ace Pumps

$1,816.84

SKU:: FMC-200-HYD-304
Weight:: 38.00 LBS
Width:: 12.00 (in)
Height:: 12.00 (in)
Depth:: 12.00 (in)
Shipping:: Calculated at Checkout
Product Documentation:: Download PDF
Instruction Manual:: Download PDF
Engine:: Hydraulic Driven
Flow Rate (GPM):: 150 - 200
Gasket Material:: Viton
Material:: Cast Iron
Power Type:: Hydraulic

Current Stock: 2

Quantity:

Adding to cart… category.add_cart_announcement

Overview

Product Description

Ace Pumps 200 GPM Centrifugal Pump | FMC-200-HYD-304

Ace Cast Iron Hydraulic Driven Centrifugal Pump

Shipment Lead Time: 3-5 Days

Centrifugal pump design provides great resistance to abrasive solutions and extra flow for agitation. The advantages of the hydraulic motor driven pump are mounting versatility, customized performance and ease of maintenance. All hydraulic driven pumps are equipped with a stainless-steel shaft and wear ring for excellent corrosion resistance.

Suction	Discharge
2 NPT	1-1/2 NPT

Features:

Ideal for spraying, large tank agitation, liquid transfer, and spray - transfer combinations

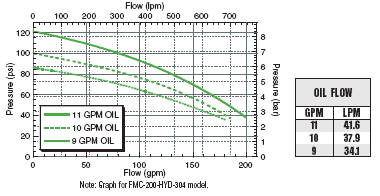

The 304 motor requires 13 GPM (49.2 LPM) maximum hydraulic fluid input and fits virtually all tractor hydraulic systems. Recommended for:
Pressure Compensating Closed Center Systems
Load Sensing Closed Center Systems
Open Center Systems up to 22 GPM (83.2 LPM) using internal needle valve bypass

Hydraulic Pump Selection Guide
