Product Description
Ace Pumps Cast Iron 8-Roller Pump | RP-800C
Ace Roller Pumps are ideal for a large range of spraying, cleaning, and transfer applications. With a compact, low-cost design, the Ace roller pump offers quality construction with a proven design for a large range of spraying, cleaning, and transfer applications. Whether used for low volume, moderate pressure applications such as field or row crops, or for spot spraying around storage bins and fence rows, the Ace roller pump delivers sufficient pressure for reaching the top of orchard trees or penetrating livestock hair.
| Suction | Discharge |
| 3/4 NPT | 3/4 NPT |
Benefits of these pumps include:
- A compact, low-cost design
- Mount directly to common tractor PTO shafts with optional PTO coupler
- Available counterclockwise standard rotation or "-R" reverse rotation clockwise models

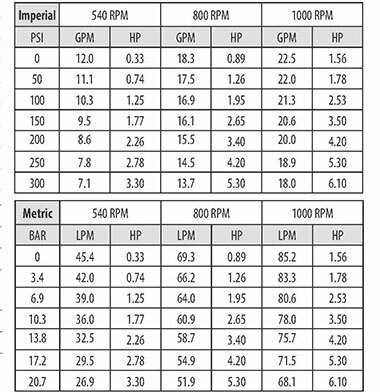

Pump Specifications:
- Ports: 3/4” x 3/4” NPT
- Maximum Flow: 22.5 GPM (85.2 LPM)
- Maximum Pressure: 300 PSI (20.7 BAR)
- Rotation: Counterclockwise from shaft end
- Speed: 540 - 1000 RPM
- Construction: Cast Iron
- Seal: FKM Lip Type
- Shaft: 15/16" Stainless Steel
- Bearings: Sealed for long life
- Rotor: Cast Iron
- Rollers: Thermoplastic with metal core
- Fluid Temperature: Maximum 140°F (60°C)
Product Videos
Custom Field
Ace RP-800C Technical Sheet RP800-C Technical Sheet
Ace RP-800C Product Manual RP-800C Product Manual
