Product Description
Banjo 3 Inch Manifold Inductor Assembly | MIS300AA
MANIFOLD INDUCTOR: ASSEMBLY 3 INCH
Features & Benefits:
- 3" full port flow by-pass.
- Easy assembly/installation with manifold connections.
- Installed after pump; suction completely empties inductor tank.
- Keeps tank free of chemicals.
Replacement Parts:
| ITEM | PART NO | DESCRIPTION | QTY |
| 1 | FC300 | 300 SERIES WORM SCREW CLAMP | 7 |
| 2 | MV301CF | 3"FP FLANGE X 3" FP FLANGE | 1 |
| 3 | M300CPG7 | 3" X 3" FULL PORT FLANGE X 7" | 1 |
| 4 | M300YG45 | 3" FULL PORT 45° Y FLANGE W/ 3/4" GAUGE PORT | 1 |
| 5 | M300Y45 | 3" FULL PORT 45° Y FLANGE | 1 |
| 6 | M300220CPG | 3" X 2" FULL PORT REDUCER FLANGE | 1 |
| 7 | M300CPG45 | 3" FULL PORT 45° COUPLING | 2 |
| 8 | PLUG075 | 3/4" PIPE PLUG | 1 |
| 9 | MHV220A | 2" FULL PORT POLY VENTURI | 1 |
| 10 | FC220 | 200 SERIES WORM SCREW CLAMP | 3 |
| N/S | M221G | 2" FULL PORT EPDM MANIFOLD GASKET WITH RIB | 2 |
| N/S | M301G | 3" EPDM MANIFOLD GASKET WITH RIB | 7 |
Product Videos
Custom Field

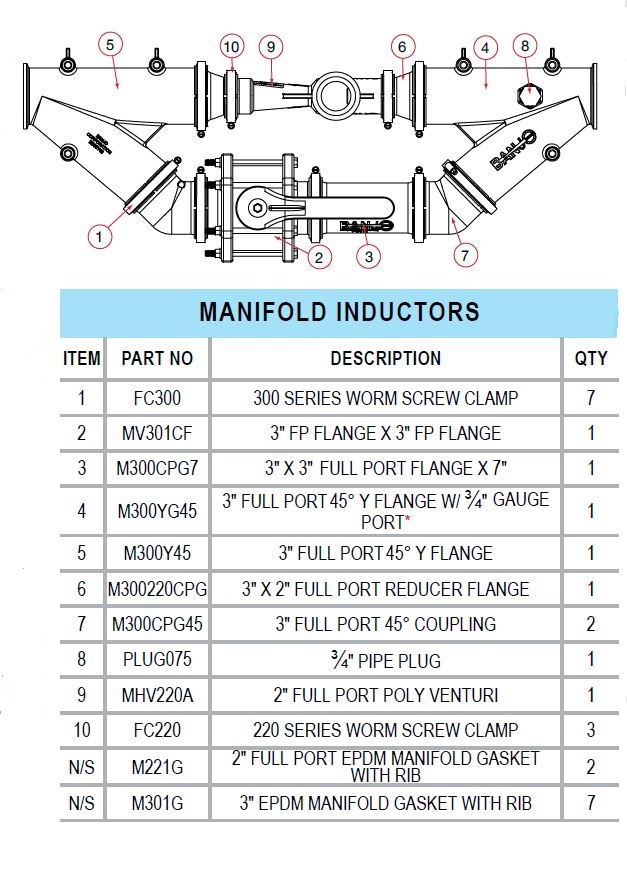

Banjo MIS300AA Drawing MIS300AA Drawing
Banjo MIS300AA Brochure MIS300AA Brochure
Material Polypropylene
Handle Type Lever
Connection Summary 3" Flange
