Cim-Tek Particulate Water Detection Filter, Model 260HS-10 | 72062
Cim-Tek® Filtration leads the field in developing state-of-the-art filters for the petroleum, industrial, agricultural, heavy duty, and biofuel markets. After working in these industries for 50 plus years, Cim-Tek has gained an unparalleled breadth of expertise with fluid filtration applications. They continue to manufacture water detection/removal medias while constantly striving for better filtration efficiencies.
Features:
-

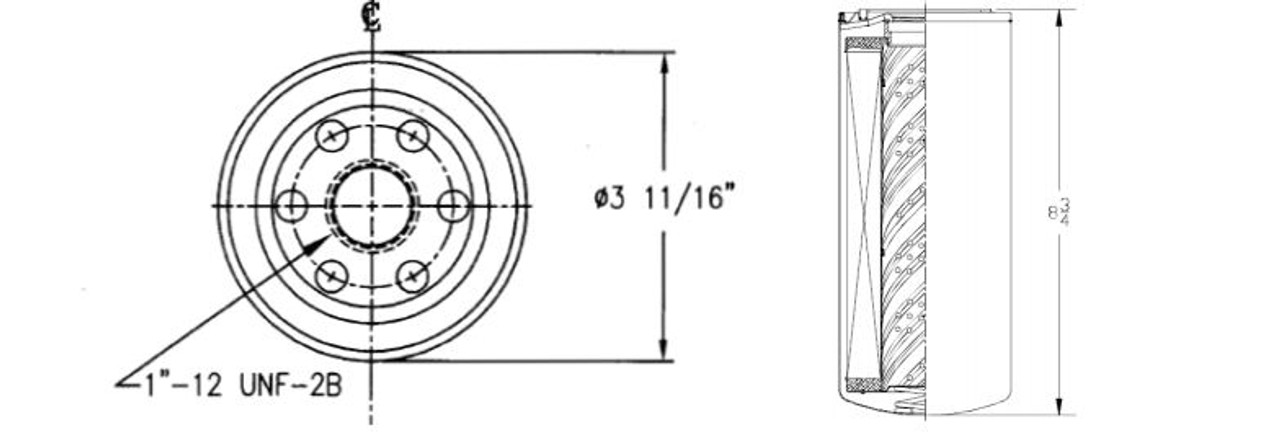

Filter Size: Width: 3 3/4" Length: 8 3/4"
- Feature: Slows flow to notify the operator that water is present, and action is required.
- Fuel Type: Straight Gasoline, Diesel/ULSD
- Function: Remove Particulate & Detect Water
- Thread: 1”-12
- Petroleum Series: 260
- Petroleum Micron: 10
- Media: HYDROSORB®
- Compatibility: Gasoline, diesel, ULSD
- Detects free or emulsified water
- Detect Water or Phase Separation & Remove Particulate
Specifications:
- Maximum Flow Rate: 25 GPM (94.6 LPM)
- Maximum Working Pressure: 50 PSI (3.4 BAR)
- Maximum Differential Pressure: 25 PSID (1.7 BAR)
Adaptors: 50002, 50003, 50181, 50006
NOT FOR USE WITH AVIATION APPLICATIONS
