FlowZone Tool Only Zephyr Battery-Powered Backpack Sprayer - 4 Gal

Overview
Product Videos

Product Description

FlowZone Tool Only Zephyr Battery-Powered Backpack Sprayer - 4 Gal | FZSATJ-3TO

Spray smarter, not harder with the power and efficiencies of a battery backpack sprayer! The Zephyr delivers a 0.2 gpm / 40 psi output so applicators can precisely deliver product at the squeeze of the trigger. Value-engineered components like an inline spray gun, carbon fiber wand, and lightweight backpack straps make the sprayer a perfect fit for the whole crew!

The Zephyr™ 4-gallon battery sprayer delivers all of the benefits of battery-powered spraying with rugged, professional performance and streamlined savings!

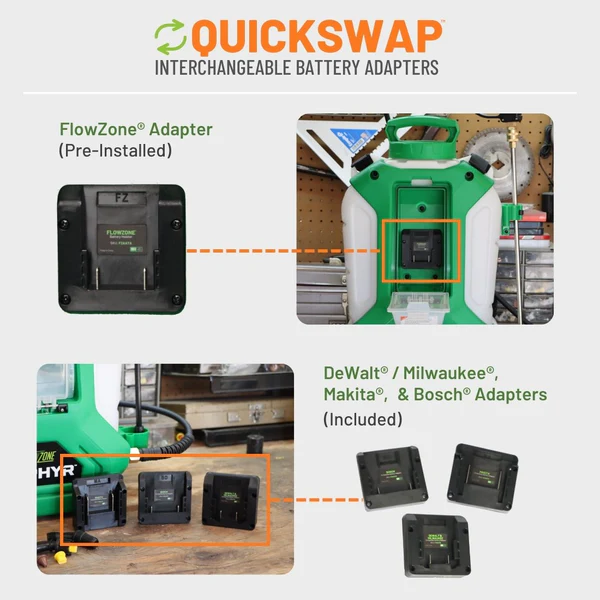

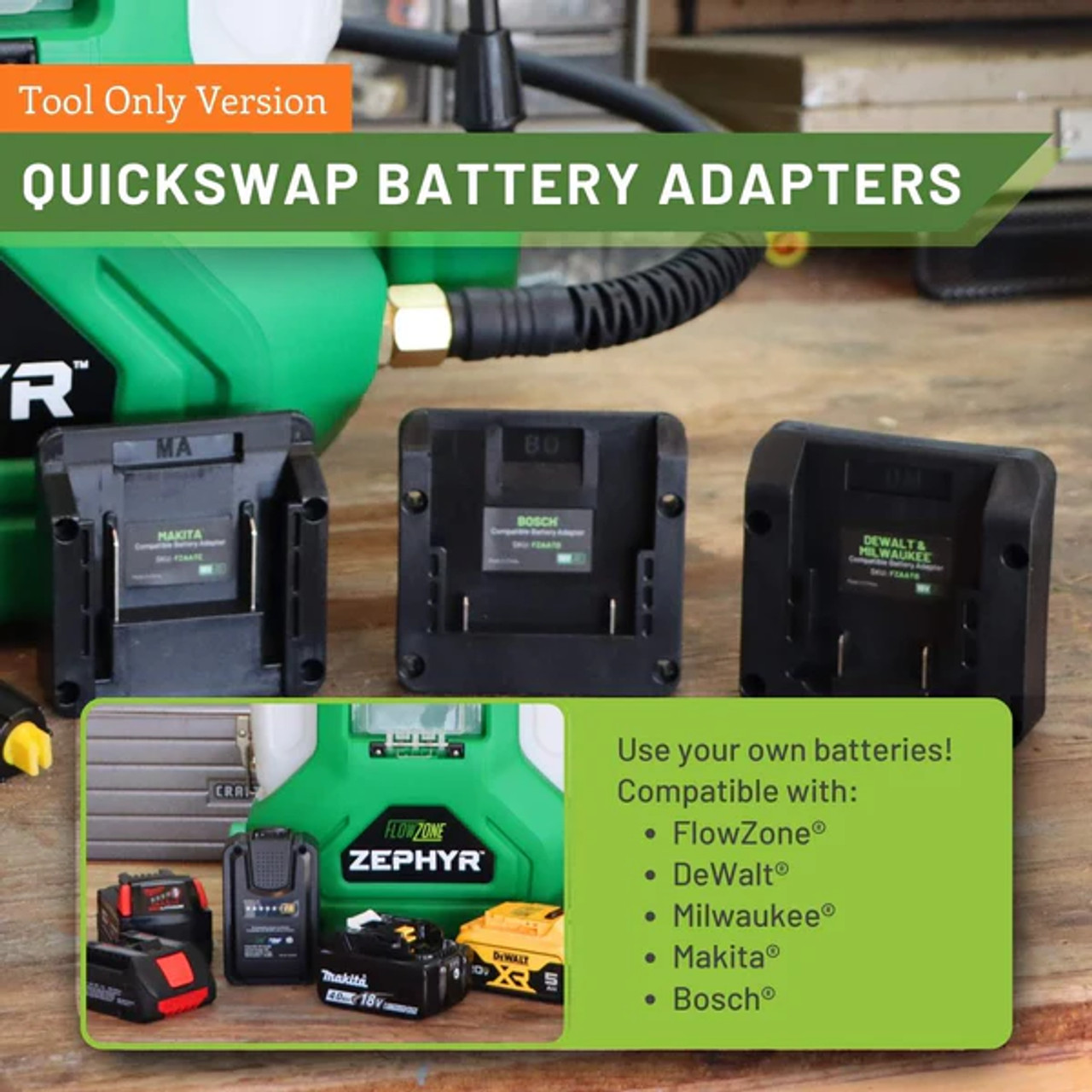

Available as a Tool Only option at a cost savings! Applicators with existing 18V / 20V FlowZone®, DeWalt®, Milwaukee®, Makita®, or Bosch® batteries can purchase the Zephyr™ without a battery and charger and save! The all-new QuickSwap™ battery holster system allows for efficient installation of the battery holster to adapt to your desired platform.

Say goodbye to arm fatigue and manual pumping with a single-speed, 45 psi flow of product at the squeeze of a trigger. Spray over 25-feet and up to 24 gallons per 18V / 2.6Ah battery charge (and recharge the battery to full in less than 2 hours).

Equipped with a 0.20 gallon-per-minute pump and flow-optimized nozzles, this is the ideal sprayer for controlled application of product: minimizing chemical waste and maximizing spray precision.

Dump the Pump™ today and unlock the convenience and unmatched performance of FlowZone® battery-powered spraying equipment.

Included in the box:

Tank Lid with Wand Holster (FZRARV)
Tank Strainer (FZRABW)
4-Gallon Tank (FZRAMZ)
Upper Wand Holster (FZRANL)
Lower Wand Holster (FZRANK)
Zephyr™ Front Cover Plate (FZRATM)
QuickSwap™ Battery Holster Adapter Kit (FZAATR)

FlowZone® Battery Holster
DeWalt® / Milwuakee® Battery Holster
Makita® Battery Holster
Bosch® Battery Holster

Battery Door Assembly (FZRAEG)
Lower Pressure Diaphragm Pump (Left-to-Right Flow) w/ Threaded Output (FZRATL)
Pump Outlet Hose & Nut (FZRAOG)
Pump Inlet Filter (FZRAGK)
5-Ft. UV-Resistant Reversible Hose (FZRAOF)
Lightweight Backpack Straps (FZRATK)
Inline Spray Handle (FZRAQX-V1)
18-In. Carbon Fiber Wand (FZRADK)
TeeJet®-Style Nozzle Kit (FZRASV)

Plastic 0⁰ Pin Stream Tip (0005 / 0.5 GPM at 40 PSI)
Plastic 80⁰ Fan Tip (8002 / 0.2 GPM at 40 PSI)
Plastic 45⁰ Fan Tip (4502 / 0.2 GPM at 40 PSI) + 45⁰ M18 Threaded Base
Plastic Adjustable Cone Nozzle (w/ 45⁰ M18 Threaded Base)

Specifications:

Tank Type: 4-Gallon Backpack
Spray Time: up to 2 hours
Spray Distance: over 20 Feet
Pressure: up to 40 psi
Total Output: over 24 gallons per charge
Min Flow Rate: 0.20 gpm
Pump Type: Standard Pressure Diaphragm Pump (LR)
Seal Type: Viton
Gun / Wand Type: Ergonomic Inline Spray Handle with Threaded Carbon Fiber Wand
Battery Voltage/Capacity: 18V / 2.6Ah
Battery Cell Type: Lithium Ion
Charger Type: 21V / 1A
Continues Working Time: Single Speed > 120 minutes
Agency/Standards Approvals: UL / CE / RoHS

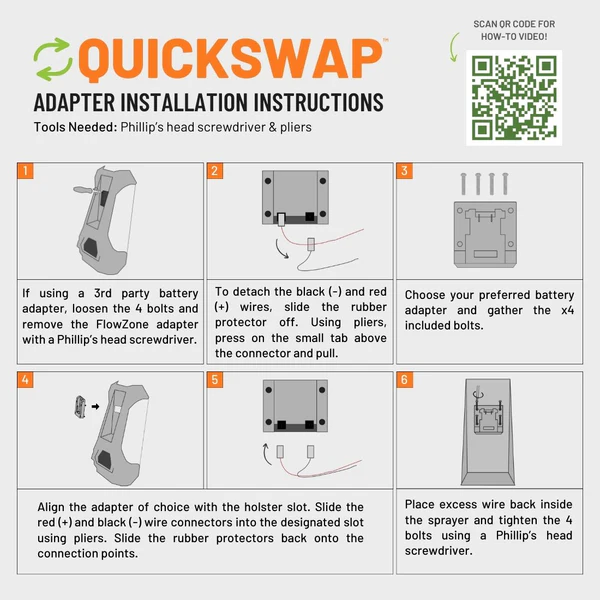

QuickSwap Guide:

*Tool ONLY (battery and charger not included).

Battery and Charger Compatibility:

IMPORTANT NOTES:

FlowZone has not changed batteries or chargers since the inception of FlowZone.
FlowZone has always had two 18 volt batteries (2.6Ah & 5.2AH) and two 21 volt chargers (1A & 2.5A).
Each charger is only compatible with its respective battery, and they cannot be interchanged
Using the larger Amp charger on the smaller AH battery - or vice versa - can damage the batteries.
Each FZ battery should only be charged with its compatible FZ charger.
Aftermarket chargers will damage the cells of the FZ battery.
