Greenleaf TurboDrop XL Nozzle | TDXL11005
The most proven multi-purpose Venturi air injection nozzle.
TurboDrop® XL Medium Pressure Nozzle (TDXL)
Greenleaf Technologies’ patented TurboDrop® technology may be the most important addition you can make to your sprayer. TurboDrop® has been proven commercially over 17 years of use in over 40 countries around the world. The TurboDrop® Nozzle can dramatically improve your application of crop protection chemicals.
The TurboDrop® XL Medium Pressure Nozzle offers a unique combination of superior drift control and excellent coverage, making it an ideal choice for all of your spraying applications.
The TurboDrop® XL Nozzle can operate between 20 and 120 psi, with an optimal pressure range of 30-90 psi. This range allows you to increase your GPA rate without changing nozzles. To reduce off target movement with pre-emerge and systemic products, 30-70 psi is recommended. To improve coverage and penetration with contact chemicals, 60-120+ psi is recommended. To be even more precise, target ASABE Coarse droplets for pre-emerge and systemic products, and medium droplets for coverage critical chemicals.
110° Flat Fan Multi-purpose medium pressure air induction nozzle.
20 - 120 psi Overall pressure range
30 - 90 psi Optimal pressure range
Estimated life (60' boom, 20" centers):
- 20,000 - 30,000 acres TDXL
Polyacetal Venturi body and SprayMax TipCap nozzle with EPDM seat gasket.
Features:
- Wide Pressure Range: TDXL 20-120psi
- Wide Drift Control Range:
- Sizes 01-02: 20-60+ psi
- Sizes 025-04: 20-80+ psi
- Sizes 05-10: 20-100+ psi
- Separate Injector (Venturi): Comes apart by hand, easy to clean (no tools required).
- Patented Stabilization Chamber: Even and uniform mixing of air with liquid which gives a tighter, more uniform droplet spectrum and a homogeneous spray solution across a wide operating range.
- Excellent With Rate Controllers: Wide pressure range allows greatest speed variations.
- Improved Coverage, Reduced Runoff: Air-filled droplets spread on the target surface rather than bouncing off.
- Reduced Clogging: Round metering orifice versus elliptical slit.
- Interchangeable Tip / Cap: Two spray nozzles in one. Other tips may also be used.
- Proven TurboDrop® Technology: Over 17 Years in 40 countries.
- Longer Wear Life:
- TDXL: 20-30,000 Acres
- Patented Pulsation Dampener: Stable, uniform spray pattern across pressure range gives good patternation and coverage.
- Widest Variety of Applications: Recommended for herbicides, fungicides, insecticides, fertilizers, growth regulators, etc.
- More Spray on Target: Dramatic reduction of off-target movement, even in higher winds.
- May Lower Water Usage: Both air and water are used as a carrier. (Excellent for Glyphosate at 5-10 GPA)
- Approved for Bayer's Liberty herbicide: TurboDrop XL and Airmix AM are the only air induction nozzles recommended by Bayer for their contact herbicides.
TurboDrop® XL Medium Pressure Nozzles - 15” Spacing Tabulation Chart:

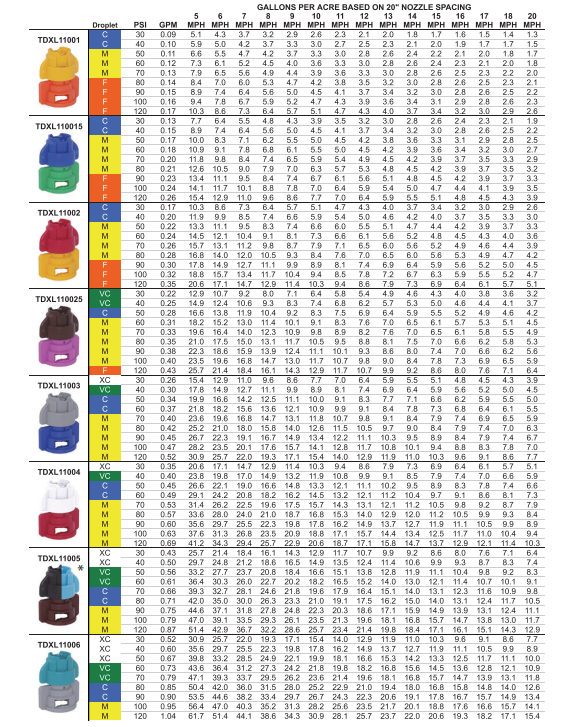

TurboDrop® XL Medium Pressure Nozzles - 20” Spacing Tabulation Chart:
