Product Description

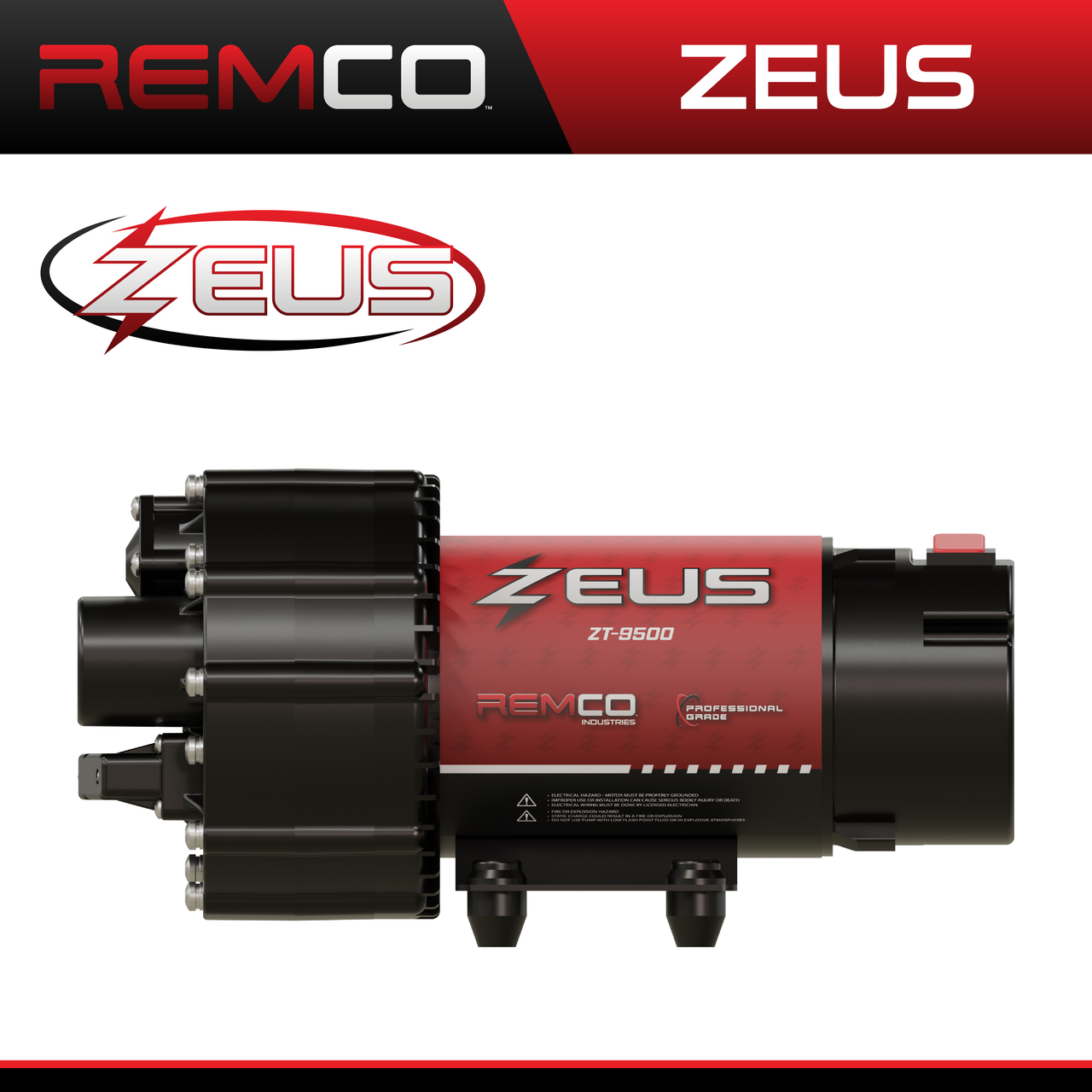

Remco 12 VDC Zeus Bulk Transfer Pump Kit | ZTK-9500
Remco's Zeus 14 GPM, 12 VDC, bypass transfer pump is the ultimate electric driven diaphragm pump, taking performance to the next level. Combining its ultra efficient electric motor with state-of-the-art pump head design, Zeus is ready for the most extreme transfer situations. Remco has combined our Professional Grade durability, engineering, and expertise in developing the Zeus transfer pump.
Features:
- Open flow rate: up 14 GPM
- Pressure Setting: 60 PSI
- 12 VDP pump
- Bypass
- 50 AMP fuse protected motor for heat and safety
- Self-priming up to 14ft
- 1 hour duty cycles during transfer
- 1” FNPT ports for easy connection
- Integrated On\Off switch
Technical Information:
- Check Valve: internal; EPA 165.45 compliant
- Vertical Suction Lift: self-priming up to 14FT (4.25M)
- Motor: 1-2 HP: 375W
- AMPS: 12 VDC - 50 AMP fuse protected motor for heat and safety
- Ports: 1” FNPT inlet/outlet
- 18' cable with battery clips and 50 AMP fuse
- Capable of being run dry
- 180°F Maximum shell temperature
- 140°F Maximum liquid temperature
Kit Contents:
- Pump Mounting Bracket
- Adapter 1” Male NPT x 1” Hose Barb
- Elbow 1” Male NPT x 1” Hose Barb
- Cam Lock (D) 2” Female Coupler x 2” Female NPT
- Nipple 1” Male NPT x 1” Male NPT
- Ball Valve Full Port 1” Female NPT
- Nozzle 45 Degree 1” Male NPT
- 1” Hose Clamps
- Snap-Pins
- 5’ of 1” Suction Hose
- 12’ of 1” Discharge Hose
*Tank NOT included
