Remco RollMax, 4 Roller, Cast Iron, CW Rotation, 5/8” Shaft | R440C

Remco

$152.75

SKU:: R440C
UPC:: 810042233331
Weight:: 15.00 LBS
Width:: 10.00 (in)
Height:: 10.00 (in)
Depth:: 10.00 (in)
Shipping:: Calculated at Checkout
RollMax R440C Documentation:: Documentation
RollMax R440C Manual:: Manual

Current Stock:

Out of stock - Check back soon

Overview

Product Description

Remco RollMax, 4 Roller, Cast Iron, CW Rotation, 5/8” Shaft | R440C

RollMax is the newest addition to the Remco line of Professional Grade pumps. Durable components, quality accessories, and serviceable by the Rebuild Ready design make this pump a versatile product to have in the field.

Specifications:

Maximum Flow Rate: 9.4 GPM
Maximum Pressure: 150 PSI
Maximum Speed: 2600 RPM
Rotation: Clockwise
Shaft Size: 5/8"
Ports: 3/4" FNPT
Pump: Cast Iron

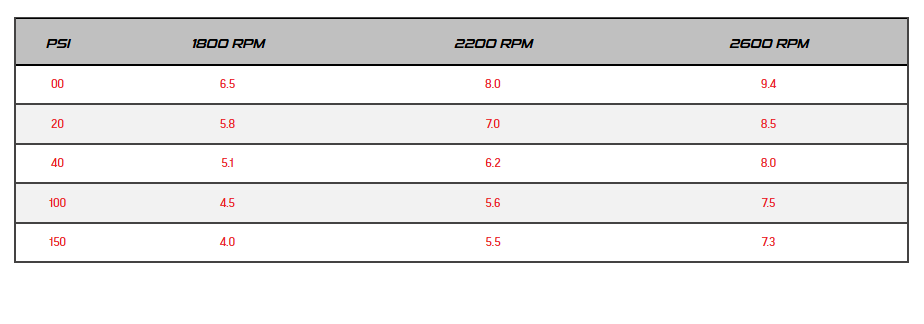

RollMax R440 Series Performance Chart:

R440 Series Dimensions:

(Dimensions may vary by model)

Rollmax Series - Rebuild Ready:

Remco's RollMax Series can easily be serviced and rebuilt in a matter of minutes, the only tool required is a wrench. All of this is possible while the pump remains attached to the drive shaft and plumbing remains intact.

Step #1: Loosen and remove the 4 cap bolts
Step #2: Easily slide the pumps endplate off of the shaft. Do not to damage the shaft
Step #3: Inspect and replace worn rollers as needed with our universal repair kits.
Be sure to lubricate the shaft seal before reinstalling.
Step #4: Carefully reinstall the pump endplate and cap bolts
Step #5: RollMax is ready to spray
