Product Description
Remco RollMax 6 Roller, Cast Iron, CCW Rotation 5/8” Shaft | R660C
RollMax is the newest addition to the Remco line of Professional Grade pumps. Durable components, quality accessories, and serviceable by the Rebuild Ready design make this pump a versatile product to have in the field.
Specifications:
- Maximum Flow Rate: 19.6 GPM
- Maximum Pressure: 150 PSI
- Maximum Speed: 1000 RPM
- Rotation: Counter Clockwise
- Shaft Size: 5/8"
- Ports: 3/4" FNPT
- Pump: Cast Iron

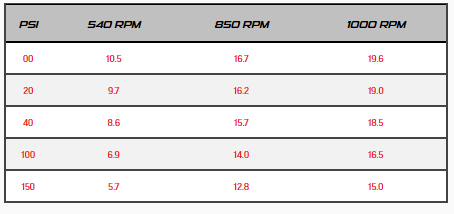

RollMax R660 Series Performance Chart:
R660 Series Dimensions:
(Dimensions may vary by model)
Rollmax Series - Rebuild Ready:
Remco's RollMax Series can easily be serviced and rebuilt in a matter of minutes, the only tool required is a wrench. All of this is possible while the pump remains attached to the drive shaft and plumbing remains intact.
- Step #1: Loosen and remove the 4 cap bolts
- Step #2: Easily slide the pumps endplate off of the shaft. Do not to damage the shaft
- Step #3: Inspect and replace worn rollers as needed with our universal repair kits.
- Be sure to lubricate the shaft seal before reinstalling.
- Step #4: Carefully reinstall the pump endplate and cap bolts
- Step #5: RollMax is ready to spray
