Product Description

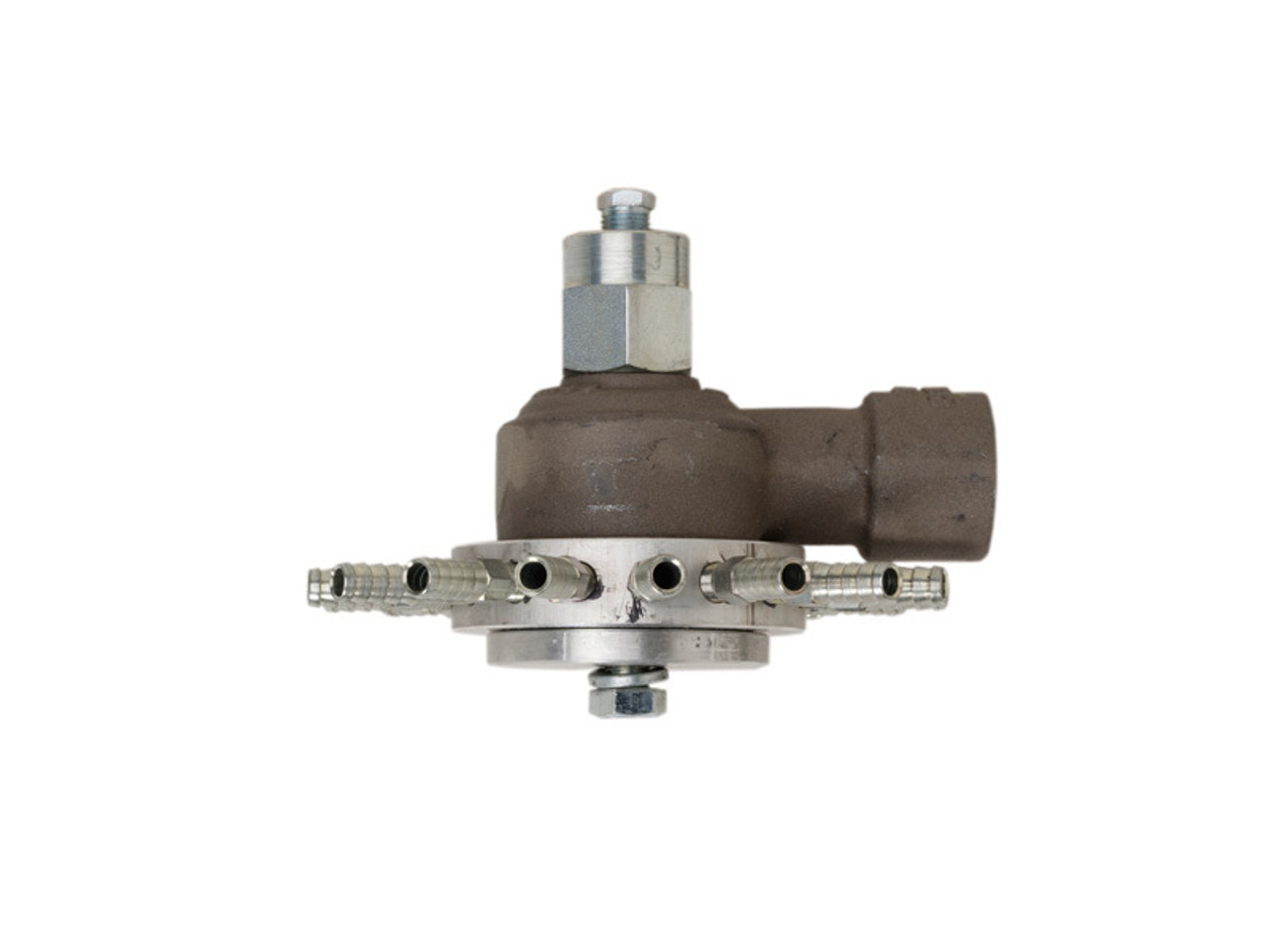

Continental A-MVD Series Vertical Dam Manifold | A-MVD-16A201
Catalog No.A-MVD the MVD is great budget line even distribution system that going to get you with in 8-10 percent accuracy. It's the biggest bang for your buck. Other manifold systems are twice as much for the same results. The most important changes to the MVD have been the option to have it either custom made to the exact number of outlets you require, or you can plug off what you don't need. Just chose the manifold size you need, large or small, and your good to go. Keep in mind for better distribution accuracy please see the A-360 series above.
Manifold Size Formula:
Tool bar width in feet X Speed X lbs. N per acre X .1212 = Total lbs N per hour.
Taking your Total lbs N per hour and dividing it by your number of outlets will get you pounds of N per outlet. Then use the chart below to determine which manifold you need.
NOTE: ABOVE RATE RANGE IS BASED ON 100 LBS OF TANK PRESSURE. RATE CHANGE WILL CHANGE AT APPROX. 1/2 PERCENT PER POUND OF TANK PRESSURE DIFFERENTIAL. EXAMPLE: FOR 90 LBS OF TANK PRESSURE, YOU WOULD REDUCE THE CAPACITY BY 5 PERCENT.
Features:
- Rate Range: 150 and up lbs N per outlet
- Hose Barb Size: 3/8"
