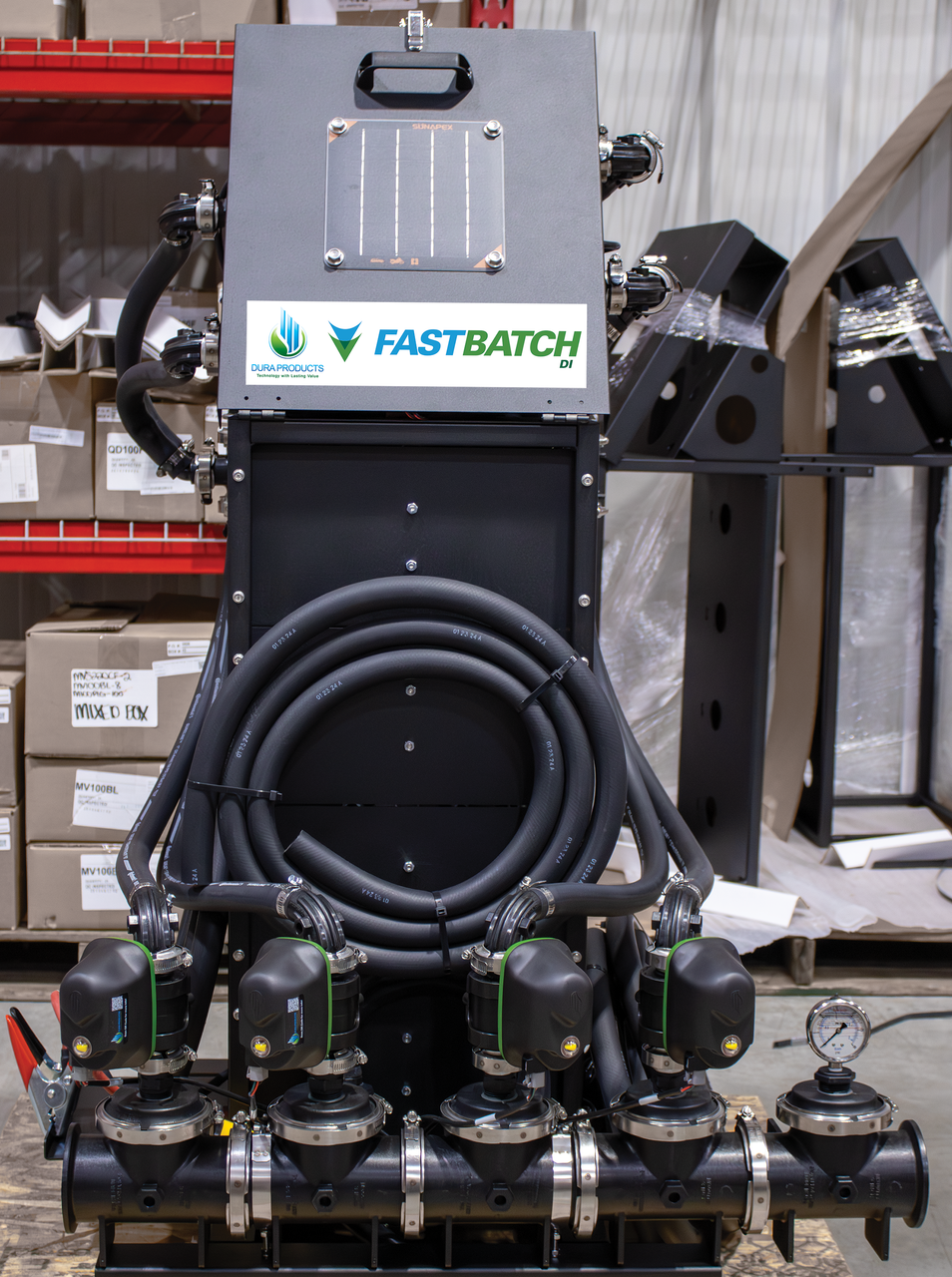

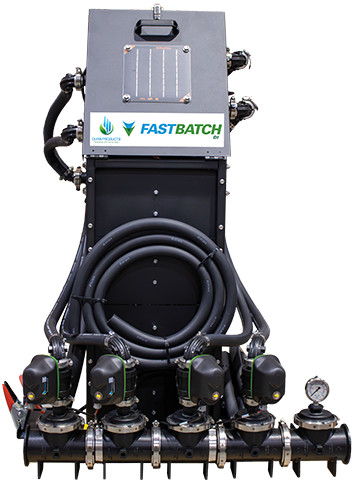

Dura 3″ FastBatch DI System 12V Viton® 4 Pump | DPAB-DI3V-12
The Dura Auto-Batch™ Direct Injection System has been rebranded as the FASTBATCH™ DI, aligning it with our industry-leading line of high-performance spray trailer solutions.
But it’s more than just a name change, Dura's added powerful new upgrades at no added cost:
- Integrated solar panel
- Upgraded lid and containment
- Built-in shelf on the meter
- Industry-standard dry-disconnects for calibrating
- Electric valves for enhanced automation
You’ll continue receiving the fully assembled system at the same price, now with even greater value and performance right out of the box.
The Dura FastBatch™ DI sprayer filling system reduces sprayer load time by up to 75%. The system is automated, so the operator can multi-task. It provides recirculation, so it maximizes chemical performance. It simultaneously direct injects chemicals and is a closed fill system, reducing operator exposure to chemicals.
By optimizing loading efficiency for narrow application windows, you can get a return on your investment in less than 9 spraying days.
Example fill – 1,000-gallon batch size: Filled in less than 5 1/2 minutes with 2″ plumbing
- 37.5 gallons of SureStart
- 25.0 gallons Atrazine
- 25.0 gallons of Glyphosate
- 12.5 gallons of 2,4-D
How it Works
- Turn meter screen on by pressing any button, the “Power” light will be on if connected to power.
- Press Auto
- Set Amount
- Press Start (this puts meter into Auto-Batch mode, “Run” light will come on)
- The pump will begin to dispense fluid & automatically shuts off when complete
Features and Benefits:
- Filling your sprayer has never been easier or faster
- Reduces operator error and herbicide exposure
- Provides recirculation, maximizing chemical performance
- Accurately dispenses repeatable batches
- Integrated solar panel
- Upgraded lid and containment
- Built-in shelf on the meter
- Industry-standard dry-disconnects for calibrating
- Electric valves for enhanced automation
- Includes a 2-year Warranty & Maintenance Program
Specifications:
- Operating Temp: 32 degrees F to 140 degrees F
- System includes: (4) High-Flow Dura-Pumps™, (4) Plumbing Kits, (1) Gauge Kit, (4) Dura Auto-Batch™ Meters, (4) Dura Electric Valves (1) DI Metal Frame, all hose clamps, elbows and nipples
- Dimensions:
- 53” Tall from floor to the top of control panel
- 40” Tall to the top of frame (excluding control panel)
- 18 ½ ” Deep
- 27” Wide
- 7″ Battery plate off back of frame on the bottom
The system is shipped fully assembled.
*Dura recommends the NOCO®, GenPro 10X1 charger to connect a 12V battery system for static 110V installation/operation.
• Always turn pump off and disconnect system from power when unused.
• Never leave unattended while in use.
