Sotera 12V DC Chemical Transfer Pump | SS435BX700


$1,461.72
SKU:
SS435BX700
UPC:
0-89404-21306-3
Weight:
43.00 LBS
Shipping:
Calculated at Checkout
Sotera Owner's Operation and Safety Manual:
Manual

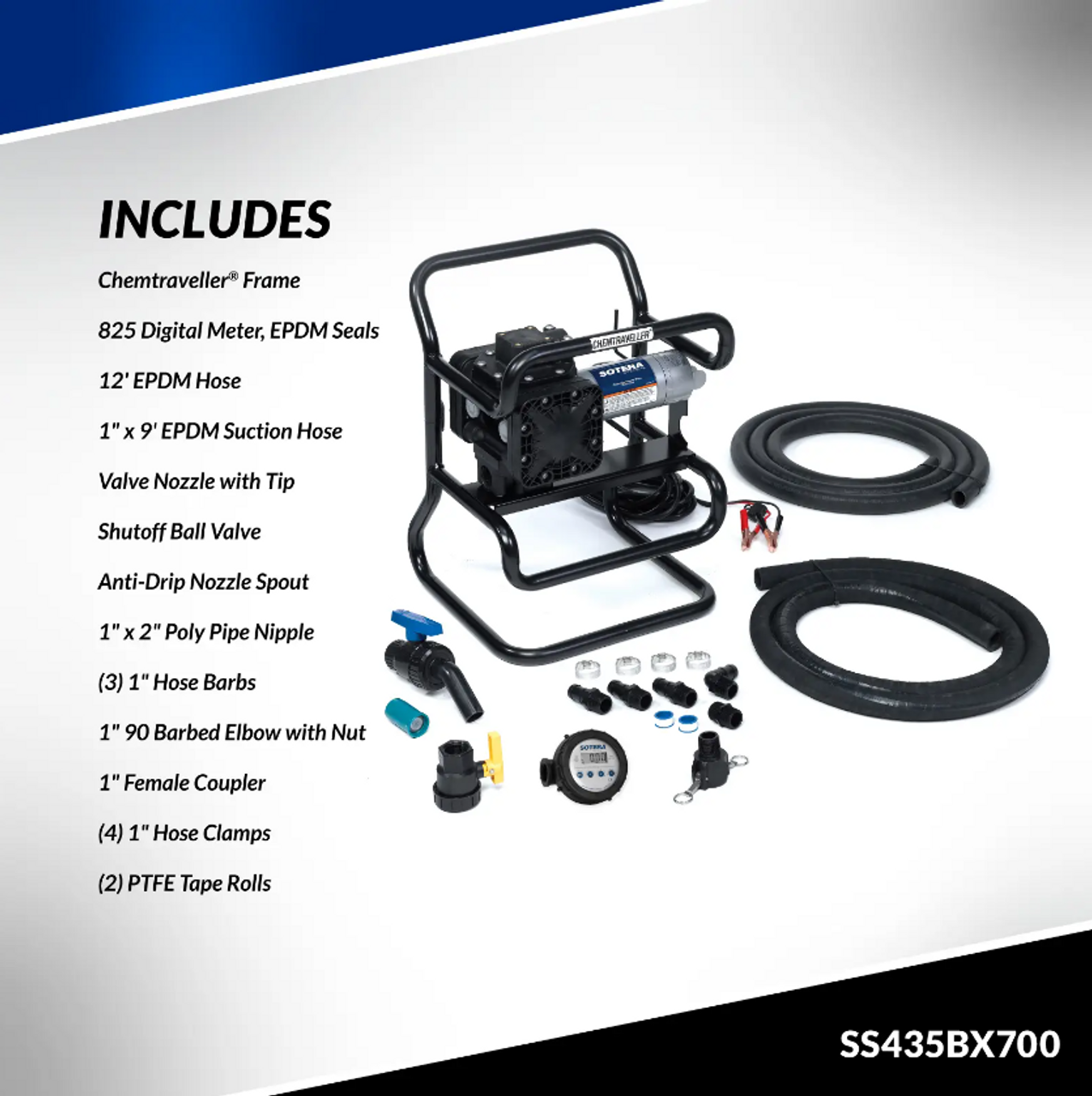

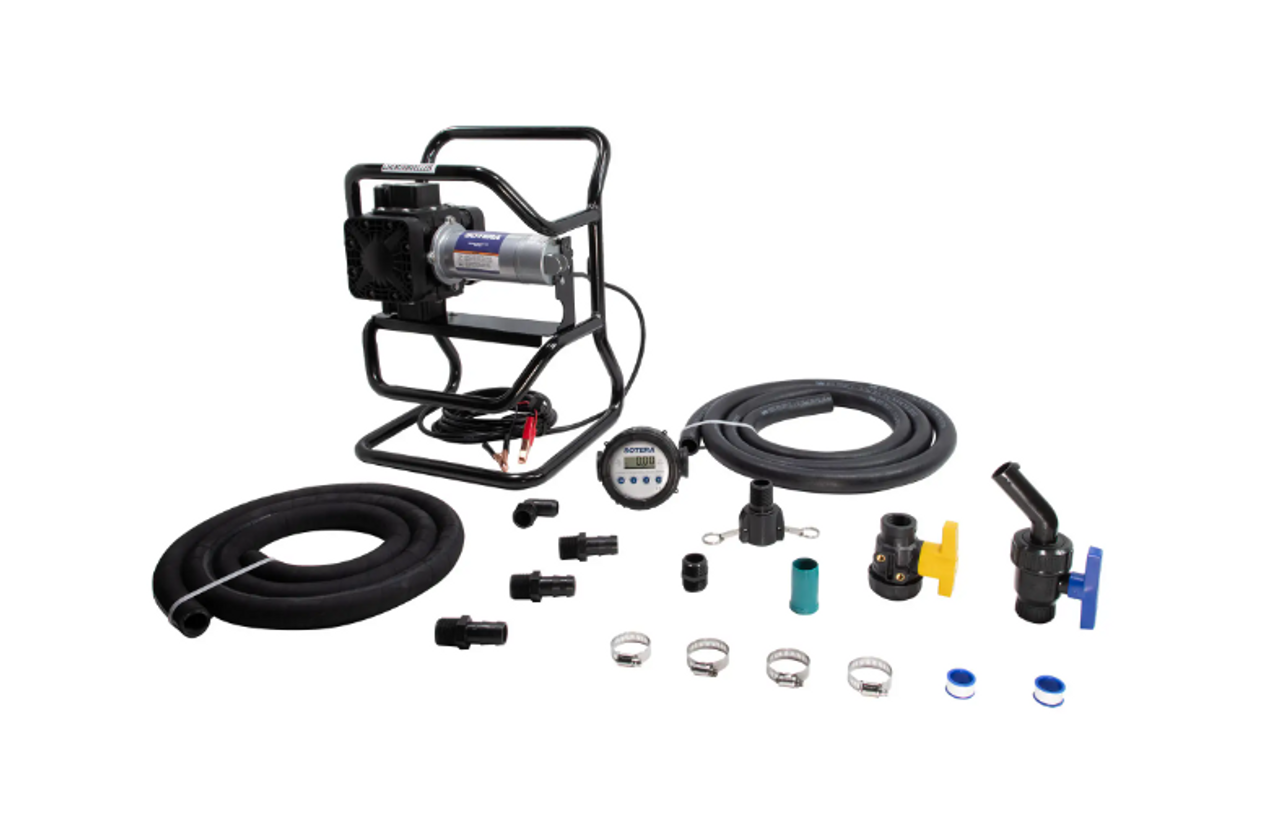

Sotera 12V DC Chemical Transfer Pump, Portable Chemtraveller® with Meter | SS435BX700

Built with Santoprene diaphragms and EPDM seals, this Sotera model is perfect for transferring water-based fluids and certain mild acids.

Specifications:

  • Max Flowrate: 13 GPM / 49 LPM
  • Flowrate Range: 0-13GPM
  • Inlet / Outlet Thread Size (in.): 1 " / 1 "
  • Duty Cycle: 30 min on / 30 min off
  • Motor Power: 0.25
  • Suction Lift (ft.): 9 '
  • Dry Vacuum (in. Hg): 8
  • Max Discharge Pressure: 15 PSI
  • Discharge Head (ft.): 38 '
  • Max Operating Pressure (PSI): 15
  • Viscosity Range (cSt): 0-3,700 cps
  • 12V DC Chemtraveler (Short Frame) Double Diaphragm Pump w/ Santoprene Diaphragms
  • Suction Hose: 1” X 9' EPDM Suction Hose
  • Discharge Hose: 1” X 12’ EPDM Hose
  • Nozzle: 1" Polypropylene Shutoff Ball Valve with Anti-Drip Tip
  • Cable Length (ft.): 20
  • Cable Gauge: 12
  • Cable Connection: Alligator Clips
  • 20' Battery Cable with Clips and 30 Amp Fuse
  • 2 1" NPT 90° Outlet Flange
  • 825 Digital Meter
  • 1" Female Camlock Coupler w/ 1" NPT Male Threads
  • 1" Poly Short Nipple
  • 3 1" Straight Hose Barbs and 1 90° Hose Barb
  • 4 Hose Clamps
  • Assembled Product Height x Width x Depth (in.): 21.2 x 15.5 x 13.1
  • Assembled Product Weight (lbs.): 26.3
  • Package Height x Width x Depth (in.): 14.5 x 21.25 x 22.5
  • Gross Weight (lbs.): 43.000 lbs

All Gaskets and Seals are EPDM.
