Banjo Bearing Pedestal 2 Inch 200PBI | 200PBI


$606.30
SKU:
200PBI
Availability:
10-14 Day Lead Time
Weight:
48.00 LBS
Shipping:
Calculated at Checkout
Brochure:
Download PDF
Product Manual:
Download PDF
Drawings:
Download PDF

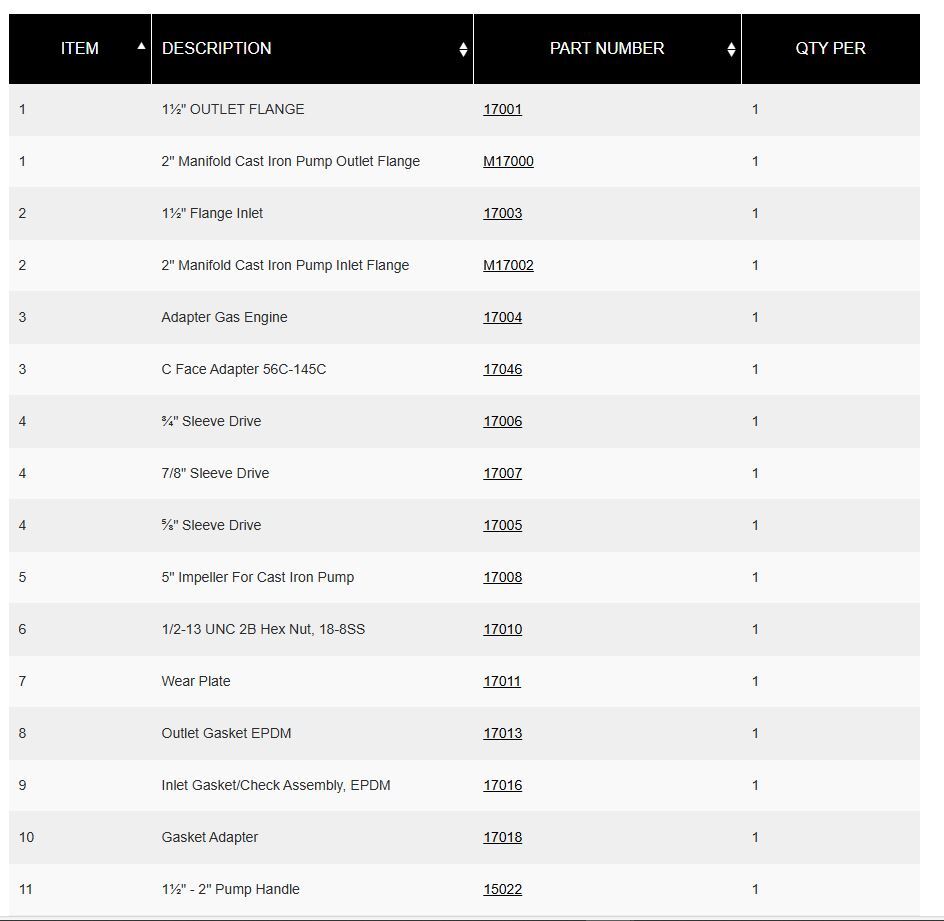

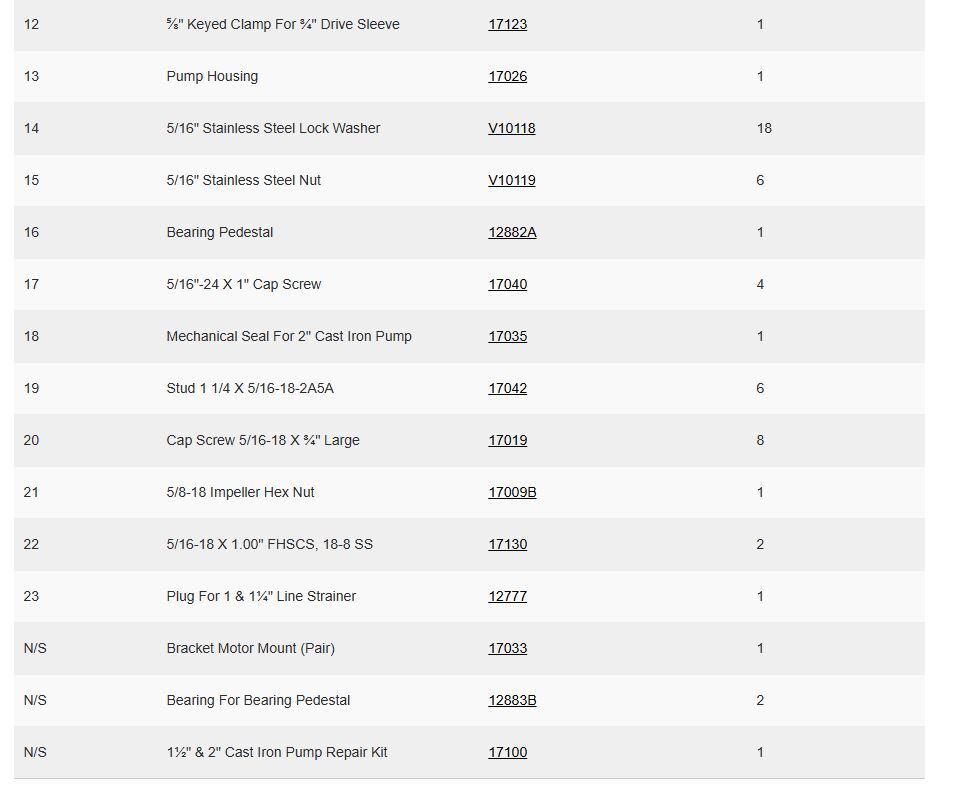

Replacement Part List:
Download PDF
Material:
Cast Iron

OR

Banjo Bearing Pedestal 2 Inch 200PBI | 200PBI

2" Cast Iron Bearing Pedestal With ¾" Straight Shaft

Features & Benefits:

  • CAUTION-WARNING: Please do not run pumps dry, restrict or reduce port sizes or dead head pumps. This could cause component failure to pump.
  • DO NOT USE WITH FLAMMABLE LIQUIDS.
  • IMPORTANT: Recommended horsepower, listed below, is for water only. Heavier fluids may require additional horsepower or a trimmed impeller.
  • Pedestal pump for long coupling to electric motor.
  • Pump Only packs complete and ready for attachment to gasoline engine.
  • Cast iron construction for rugged dependable service
  • Stainless steel shaft sleeve to protect engine shaft
  • Carbon ceramic seal with stainless steel cup and spring with FKM rubber
  • Replaceable inlet and outlet flanges
  • Dynamically balanced impeller
  • Recommendation for ⅝"

    shaft: 56C frame size, 3 HP,

    3450 RPM & 5" max impeller

    for close coupling to electric motors
  • Recommendation for ⅞" shaft:

    145TC frame size, 3 HP,

    3450 RPM & 5" max impeller

    for close coupling to electric

FKM: Good for most material.

  • Advantages: Outstanding resistance to high heat; excellent resistance to oil, gasoline, hydraulic fluids and hydrocarbon solvents; good flame retardance; very good impermeability to gases and vapor; very good resistance to weather, oxygen, ozone, and sunlight.
  • Limitations: Poor resistance to oil; gasoline and hydrocarbon solvents; adhesion to fabrics and metal is poor.
  • Temperature Rating: -20°F to 400°F

Q&A
