John Blue 12-Outlet Stainless Steel Flow Divider | FD-1210

Liquid fertilizer users demand accurate rates. The John Blue Flow Divider when used in conjunction with our liquid metering piston pump is guaranteed to deliver. After extensive research, it has been shown that the FD-1210 accurately divides liquid products across a wide range of application rates. It has been proven in the field that it is the most accurate distribution of any automatic flow divider system on the market today. The FD-2010 provides unsurpassed accuracy with application rates as low as 5 GPA and as high as 80 GPA on 30-inch row spacing at 5 MPH.

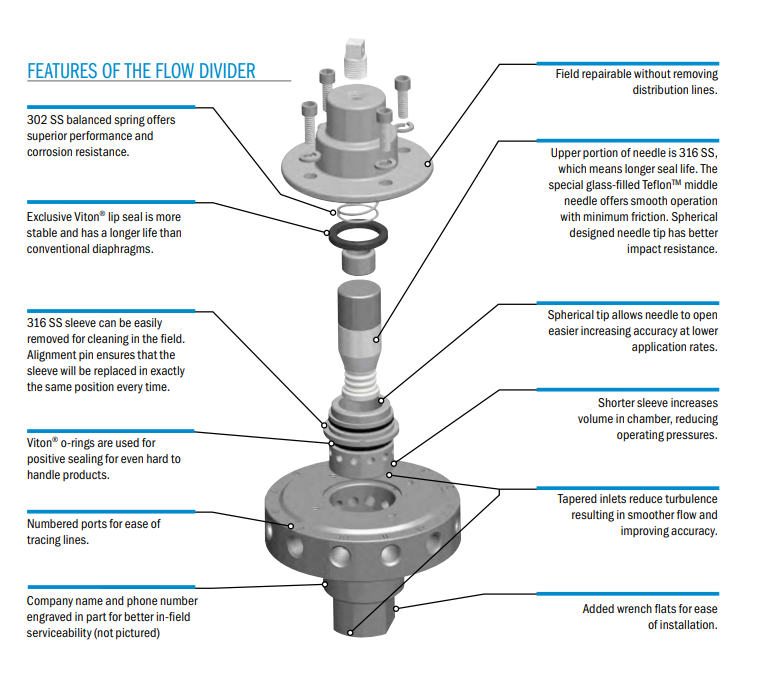

Features:

302 SS balanced spring offers superior performance and corrosion resistance.
Exclusive Viton® lip seal is more stable and has a longer life than conventional diaphragms.
Upper portion of needle is 316 SS, which means longer seal life. The special glass-filled Teflon® middle needle offers smooth operation with minimum friction.
Spherical tip allows needle to open easier increasing accuracy at lower application rates.
316 SS sleeve can be easily removed for cleaning in the field. Alignment pin ensures that the sleeve will be replaced in exactly the same position every time.
Viton o-rings are used for positive sealing for even hard to handle products.
Shorter sleeve increases volume in chamber, reducing operating pressures.
Tapered inlets reduce turbulence resulting in smoother flow improving accuracy by up to 3 times.
Numbered ports for ease of tracing lines. Wrench flats for ease of installation.

Specifications:

Outlets: 12
Inlet Size: 3/4" FPT
Outlet Size: 1/4" FPT
Max Flow/Outlet: 2.25 GPM

Accessories:

116064 – FD-1210 Retrofit Kit. Includes the adjustment bolt, nut, spring seat, cap with straight threads (for 12 or 20 port kits) and vented plug.
115406-A – Needle and Seal Kit – FD-0610, FD-1200 and FD-1210
3 PSI spring and 11/16″ straight inlet/outlet threads
CV-1101 – Poly Check Valve, 1/4″ NPT Female Inlet and Outlet
CV-1101-B14 – Poly Check Valve, 1/4″ Hose Barbs Inlet and Outlet, replaces 115285-01
CV-1101-B38 – Poly Check Valve, 3/8″ Hose Barbs Inlet and Outlet, replaces 115285-01
CV-1101-B12 – Poly Check Valve, 1/2″ Hose Barbs Inlet and Outlet, replaces 115286-01
