Product Description

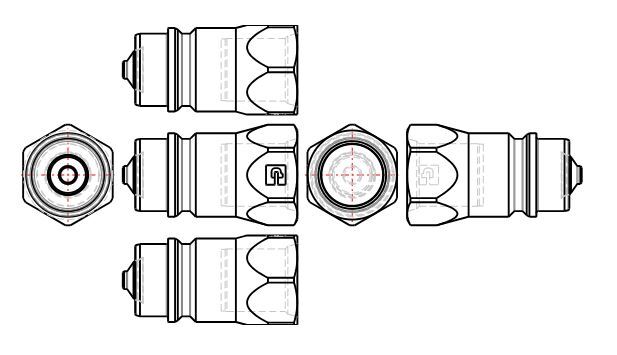

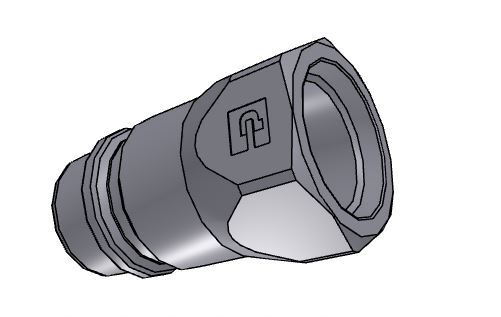

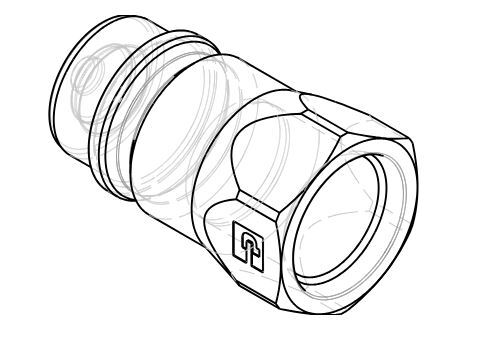

Pioneer John Deere Universal Male Tip Replacement| DR10008
ISO 5675 Univeral Male Tip for John Deere Equipment
The DR10008 male tip is manufactured to meet the original John Deere dimensional specifications and has a slightly smaller hex size than a standard Pioneer tip.
Pioneer agricultural products provide the most reliable and exacting aftermarket OEM interchanges in the industry. Couplers and nipples connect with specific OEM brand quick coupling styles. Agricultural male tip and female body interchange styles include: Allis Chalmers, J I Case, Ford, John Deere, International Harvester (CNH), and Massey - Ferguson.
Features:
- Meets all ISO 5675 dimensional specifications
- Induction hardened ball locking groove to prevent brinelling and increase life
- Shielded valve and valve stop eliminates flow checking
- Leak-free poppet valve design
- Protective zinc plating with clear trivalent chromate finish
- These nipples will connect with all ½” body size 4000, 4200, 5000, 6600, 8200, 8450, and 9200 series couplers
- Wide range of coupling styles to interchange with major farm equipment brand implement male tips and female coupler bodies
- Male tips have hardened locking ball grooves to resist wear and provide protection from Brinelling
- Positive valve stop prevents flow checking for smooth performance
Specifications:
- Body Size: 1/2"
- Part Number: DR10008
- Thread: 3/4-16 Female ORB
- Pressure Rating(psi): 3000 PSI
- Coupling Half: Nipple - Male Tip
- Competitor Part Number: John Deere male tip AR94522
- Function: Connects with John Deere couplers manufactured to accept ISO 5675 male tips
Technical Characteristics:
- Material: Steel
- Interchange Styles: Allis Chalmers, J I Case, Ford, John Deere, International Harvester (CNH), and Massey - Ferguson
Markets:
- Agriculture
- Aftermarket replacement, maintenance and repair
Applications:
- Tractor attachments / implements
- Agricultural farm equipment
- Hydraulic Loaders
- Ag/mobile attachments
Ordering Information:
- This male tip is the same product as John Deere AR94522
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE.
- This document and other information from Parker-Hannifin Corporation, its subsidiaries and authorized distributors provide product or system options for further investigation by users having technical expertise.
- The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the
- application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors.
- To the extent that Parker or its subsidiaries or authorized distributors provide component or system options based upon data or specifications provided by the user, the user is responsible for determining that such data and specifications are suitable and sufficient for all applications and reasonably foreseeable uses of the components or systems.
