Shurflo 8000 Series 12VDC Standard Bypass Pump | 8000-543-250


$106.01
SKU:
8000-543-250
Weight:
6.00 LBS
Shipping:
Calculated at Checkout
Product Manual:
Download PDF
Brochure:
Download PDF
Power Type:
12 V Electric
Flow Rate (GPM):
1 - 5

OR

Shurflo 8000 Series 12VDC Standard Bypass Pump 8000-543-250 | 8000-543-250

Shurflo 8000 Series Standard Bypass Pump  8000-543-250

8000 Series internal bypass pumps are ideal for applications where an automatic demand switch is not desired.  Pumps with bypass will continue to run without damage once the bypass pressure is reached.  They incorporate a triple chamber design with Viton® elastomers to withstand the toughest applications.  Perfect for spot sprayers, foam markers and transfer applications where smooth, consistent flow is needed.

Features:

Self-priming up to 8 vertical feet (2.4m)
Chemical-resistant materials
Internal Bypass
Can run dry without damage

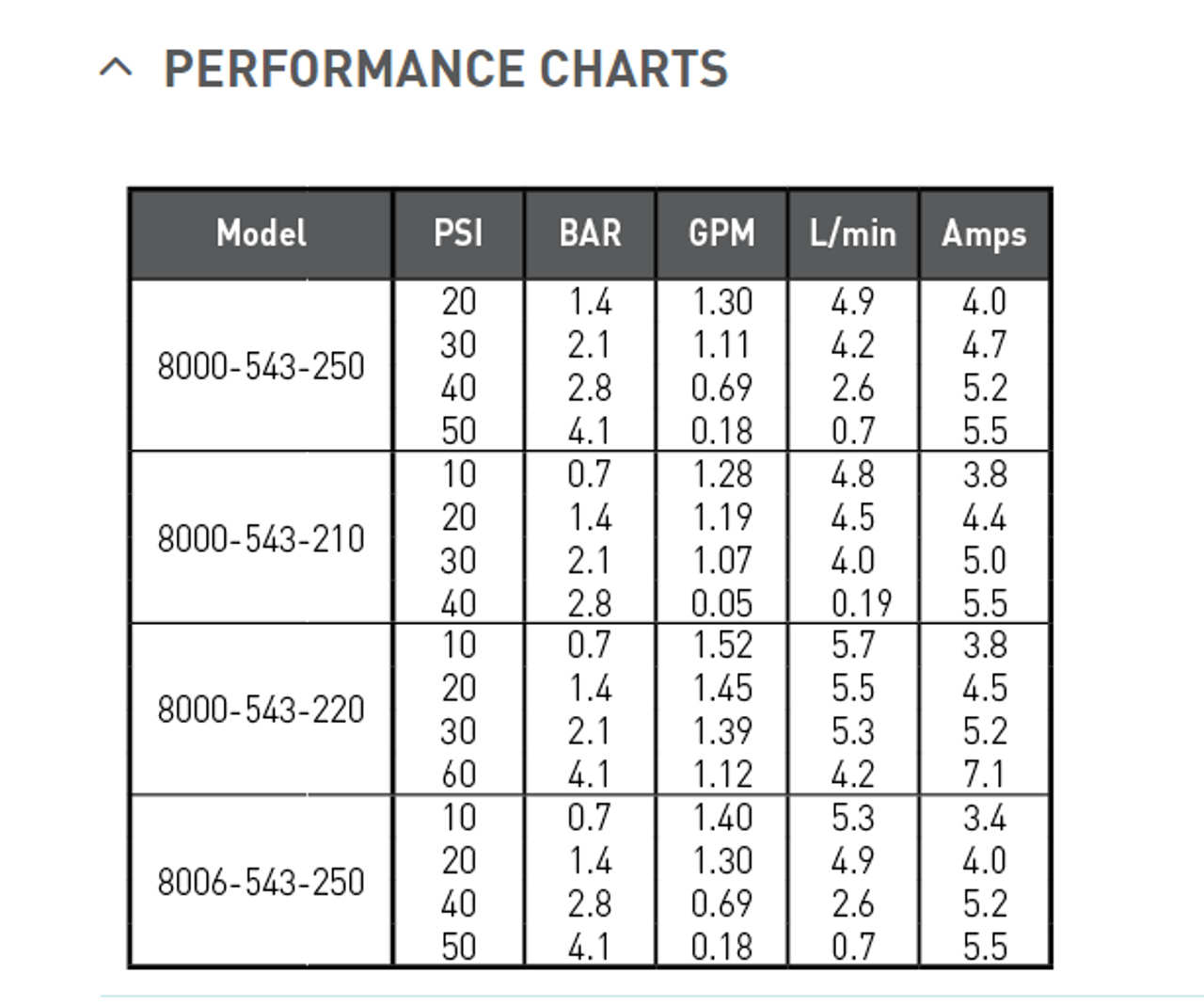

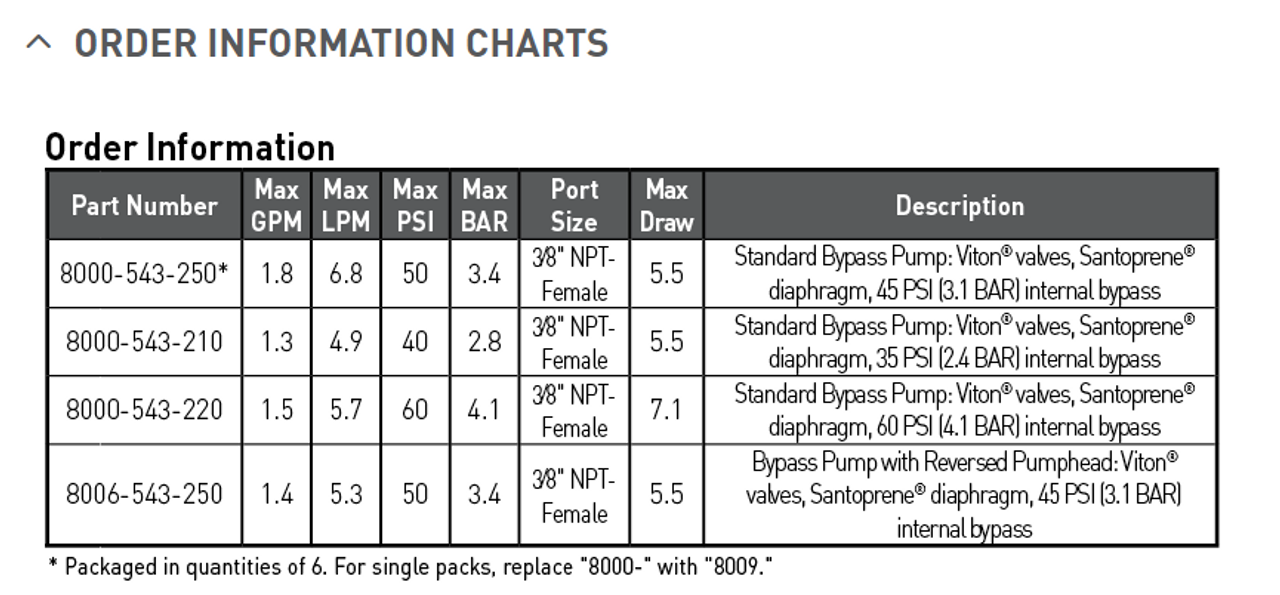

Specs:

1.8 GPM Max/6.8 L/min
Max PSI: 50
Max BAR:3.4
Port Size: 3/8" NPT-Female
Max Draw: 5.5
Viton® valves
Santoprene® diaphragm
45 PSI (3.1 bar) internal bypass
