Smucker 30' Weed Wiper Pull Type | WWWW30-P

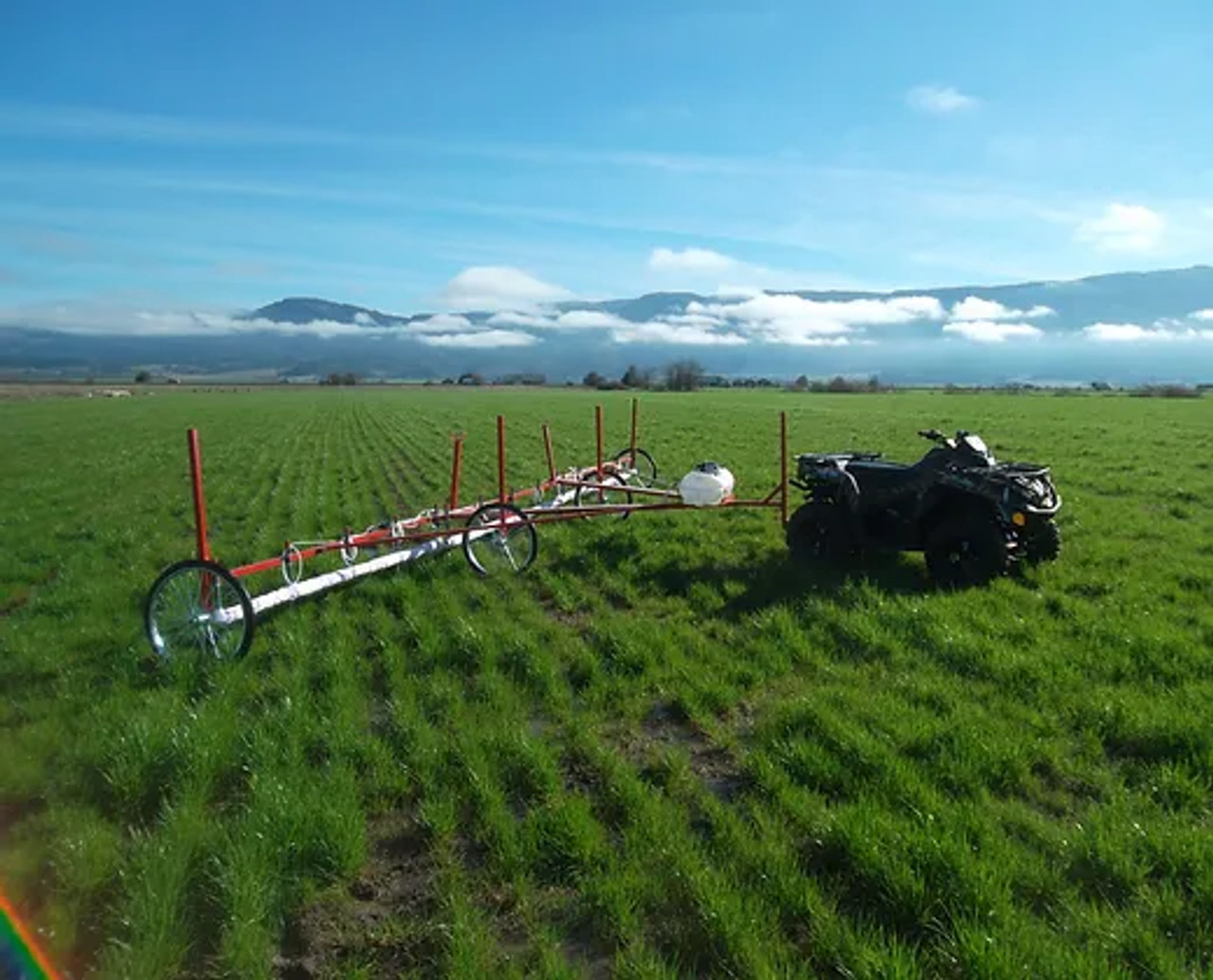

Smucker's 30 ft. pull-type weed wiper unit. Our pull-type units include a tank and pump for your application convenience. This particular unit has a 10 ft. center section and two 10 ft. wings that fold in for your convenience. The sponge boom height can be adjusted from 2 to 42 inches above the ground.

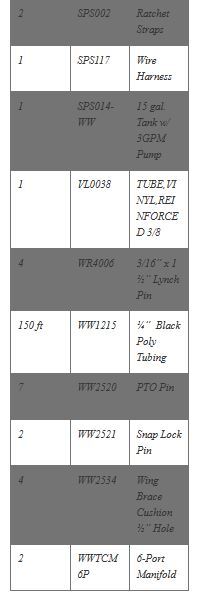

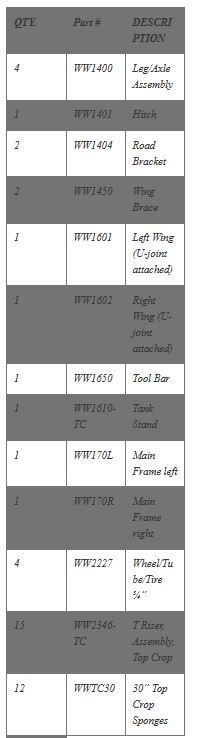

This Kit Includes:
<td style="box-sizing: border-box; padding: 10px; border-width: 1px; border-style: solid;
|
QTY. |
Part # |
DESCRIPTION |
|
4 |
WW1400 |
Leg/Axle Assembly |
|
1 |
WW1401 |
Hitch |
|
2 |
WW1404 |
Road Bracket |
|
2 |
WW1450 |
Wing Brace |
|
1 |
WW1601 |
Left Wing (U-joint attached) |
|
1 |
WW1602 |
Right Wing (U-joint attached) |
|
1 |
WW1650 |
Tool Bar |
|
1 |
WW1610-TC |
Tank Stand |
|
1 |
WW170L |
Main Frame left |
|
1 |
WW170R |
Main Frame right |
|
4 |
WW2227 |
Wheel/Tube/Tire ¾” |
|
15 |
WW2346-TC |
T Riser, Assembly, Top Crop |
|
12 |
WWTC30 |
30” Top Crop Sponges |
|

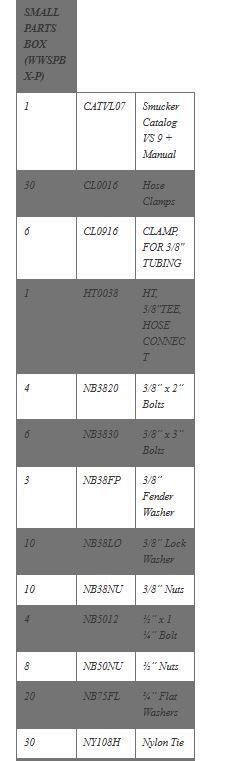

SMALL PARTS BOX (WWSPBX-P) |
||
|
1 |
CATVL07 |
Smucker Catalog VS 9 + Manual |
|
30 |
CL0016 |
Hose Clamps |
|
6 |
CL0916 |
CLAMP, FOR 3/8" TUBING |
|
1 |
HT0038 |
HT, 3/8"TEE, HOSE CONNECT |
|
4 |
NB3820 |
3/8” x 2” Bolts |
|
6 |
NB3830 |
3/8” x 3” Bolts |
|
3 |
NB38FP |
3/8” Fender Washer |
|
10 |
NB38LO |
3/8” Lock Washer |
|
10 |
NB38NU |
3/8” Nuts |
|
4 |
NB5012 |
½” x 1 ¼” Bolt |
|
8 |
NB50NU |
½” Nuts |
|
20 |
NB75FL |
¾” Flat Washers |
|
30 |
NY108H |
Nylon Tie |
|
2 |
SPS002 |
Ratchet Straps |
|
1 |
SPS117 |
Wire Harness |
|
1 |
SPS014-WW |
15 gal. Tank w/ 3GPM Pump |
|
1 |
VL0038 |
TUBE,VINYL,REINFORCED 3/8 |
|
4 |
WR4006 |
3/16” x 1 ½” Lynch Pin |
|
150 ft |
WW1215 |
¼” Black Poly Tubing |
|
7 |
WW2520 |
PTO Pin |
|
2 |
WW2521 |
Snap Lock Pin |
|
4 |
WW2534 |
