TeeJet Quick 1" Multiple Body 3 Outlet for Wet Booms | QJ363C-1-NYB


$11.12
SKU:
QJ363C-1-NYB
Weight:
0.32 LBS
Shipping:
Calculated at Checkout
QJ360C Wet Series Specifications:
QJ360C Wet Series

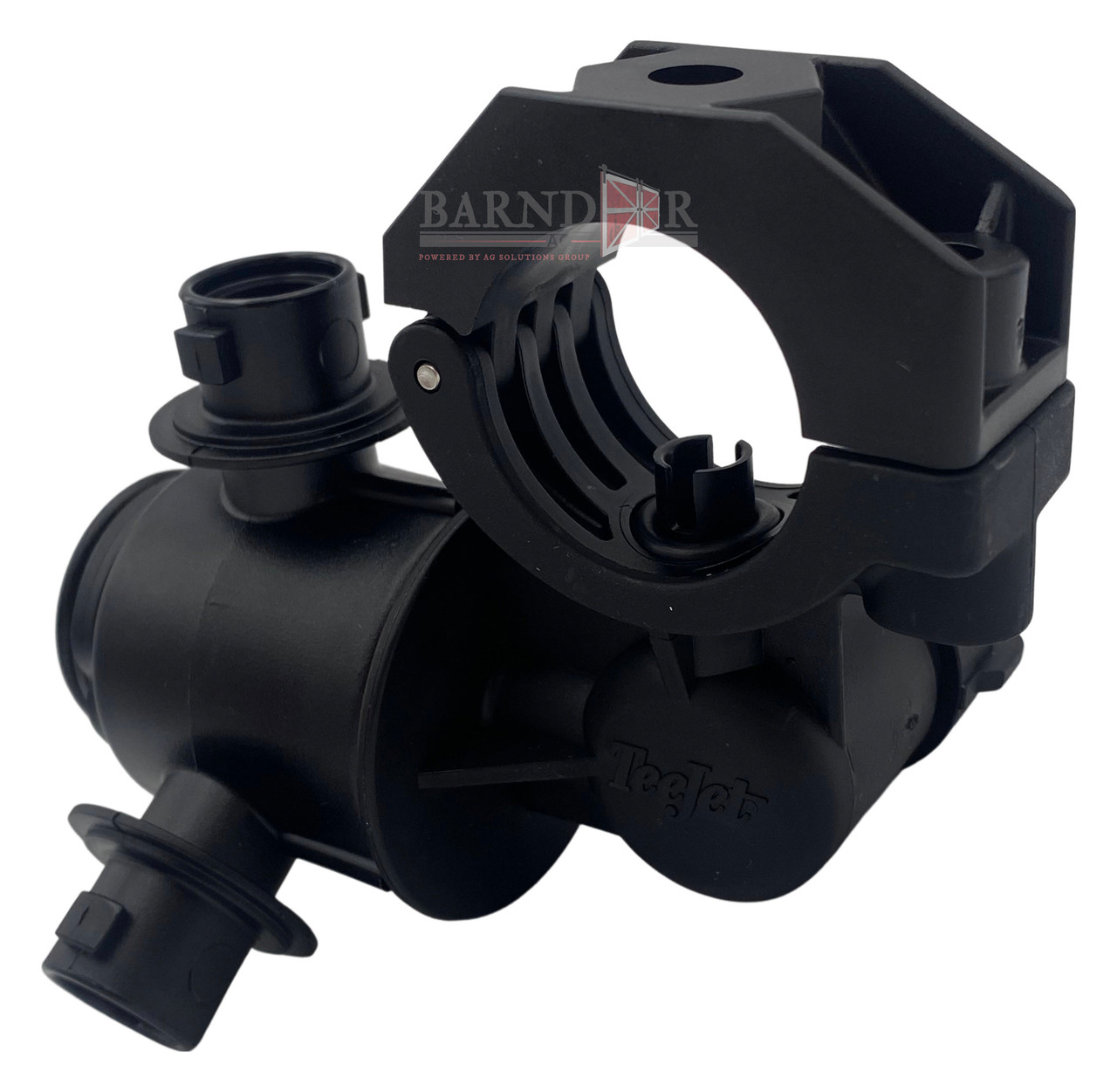

TeeJet Quick 1" Multiple Body 3 Outlet for Wet Booms | QJ363C-1-NYB

Features:

  • Available with 3 spray positions for easy change of spray tips or quick boom flushing.
  • Positive shutoff between each position.
  • Clamps to 1" pipe
  • Automatic spray alignment using flat fan spray tips.
  • Maximum operating pressure of 300 PSI (20 bar).
  • Available to fit 25 mm tubing, ½", ¾", and 1" pipe.
  • Includes ChemSaver® diaphragm check valve for drip-free shutoff. Standard diaphragm opens at 10 PSI (0.7 bar).
  • Standard EPDM diaphragm with FKM available as an option.
  • Also available with optional Air ChemSaver or e-ChemSaver® shutoff valves.
  • Flow Rate: 2.25 GPM (8.5 l/min) at 5 PSI (0.34 bar) pressure drop, 3.18 GPM (12.0 l/min) with 10 PSI (0.69 bar) pressure drop.
  • Mounts to a 3/89 (9.5 mm) hole drilled in pipe or tubing (7 mm inlet option available on 1/2" size).
  • Molded hex socket in upper clamp for attaching to flat surfaces. Accepts 5/169 or M8 bolt.
  • Hinged upper clamp reduces assembly time and fits inside common boom channels
