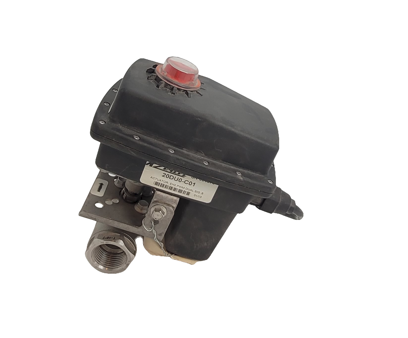

KZValve EH2 - 1" Ball Valve/ Standard Rate Control Actuator | 67FKR-FC8
KZValve actuated valves are field tested not just to prove they are waterproof and durable, but to ensure maintenance free performance and long operating life. Actuator housings, electrical components, and valve components are all designed with your needs in mind--which is why leading original equipment manufacturers specify KZValve actuated valves for their products. The KZ NH3 Valves from KZValve are available in both 1" and 1-1/4" sizes. They are quality constructed stainless steel valves for use with Raven coldflow systems and are direct replacements in all Raven systems. The motorized valve actuator can be mounted on existing Raven valves.
Direct replacement for Raven 063-0173-877
KEY FEATURES
- Waterproof: Rated NEMA 6P
- Ignition safe: Rated NEMA 7D
- Round cable strain relief
- Dual cable entrances
- Actuate 3⁄4" to 3" valves
- Mid-size design
EH2 SERIES SPECIFICATIONS:
Operating Voltage: 12 VDC, 24 VDC, 24 VAC
Operating Amperage: 0.3 - 2.5 Amps
Speed: 0.5 - 20 Seconds
Operating Torque: 100 in. lbs.
Stall Torque: 500 - 600 in. lbs.
Operating Temperature: -32°F to 125°F (-36°C to 52°C)
Storage Temperature: -40°F to 185°F (-40°C to 85°C)
Weight: 3.8 lbs. (1.7 kg.)
