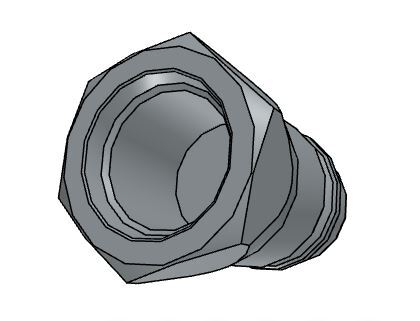

Pioneer 8010 Series Universal Nipple | 8010-15

The 8010 Series is the standard male tip of the agricultural industry, developed and proven by Pioneer in over 60 years of farm service.

8010 Series Nipples (hydraulic) 3000 psi, connect with 1/2 "" size 4000, 4200, 5000, 8200, 9200, Series Couplers and are interchangeable with other products accepting ISO 5675 universal tips. They are the universal standard male tip of the agricultural industry, commonly referred to as the Pioneer tip.

Features:

Meets dimensional requirements of ISO 5675
DC valve version allows connection under system pressure on the coupler side and residual pressure (up to 3000 psi) on the nipple side
Poppet style valve prevents uncoupled leakage of hydraulic fluid
Hardened locking ball groove prevents Brinelling
Shielded valve and positive valve stop eliminates flow checking
Protective zinc plating with clear trivalent chromate finish
Globally interchanges with any other nipples or tips accepting ISO 5675

Technical Characteristics:

Size: 1/2”
Material: Steel
Valve Options: Ball, Poppet, Pressure Relieving Poppet (DC)
Port Ends: Female NPTF, Female ORB, Female BSPP
Seal Options on poppet valves: Nitrile, EPR, Fluorocarbon, Neoprene

Markets:

Agriculture
Industrial
Construction

Applications:

Tractors
Implements
Agricultural attachments
Hydraulic Loaders
Add-on hydraulic circuits
Hydraulic tools
Ag/mobile attachments

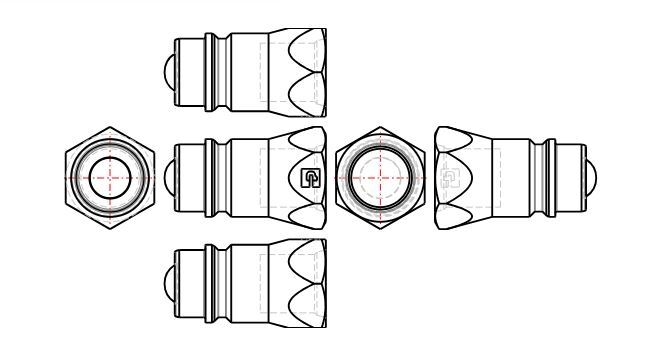

Specifications:

Body Size: 1/2"
Port End: 3/4-16 ORB
Valve Type: Ball
Length: 1.95"
Largest Diameter: 1.23"
Wrench Flats: 1.06mm
Weight(lbs): 0.20
Maximum Operating Pressure: 3000 psi
Flow Rate: 12 gal/min
Seal Material: n/a
Media: Hydraulic
Coupling Half: Nipple
Minimum Operating Temperature: -40 °F
Maximum Operating Temperature: 250 °F
Body Material: Steel
Thread Size: Female
Plating Type: Zinc with Clear Trivalent Chromate
Application: Hydraulics
Specifications Met: ISO 5675
