Pioneer 8010 Series Connect-Under-Pressure Nipple | 8010-4P-DC


$17.69
SKU:
8010-4P-DC
UPC:
08250600168
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
Agricultural Couplings:
Quick Coupling Adapters
Pioneer 8010-4P-DC Safety Instructions:
Safety Instructions
Pioneer 8010-4P-DC Fluid Compatibility Chart:
Fluid Compatibility Chart
Pioneer 8010-4P-DC Brochure:
Brochure

Pioneer 8010 Series Connect-Under-Pressure Nipple | 8010-4P-DC

The 8010 Series is the standard male tip of the agricultural industry, developed and proven by Pioneer in over 70 years of farm service. These nipples will connect with all ½” body size 4000, 4200, 5000, 6600, 8200, and 8450 series couplers. Tips are offered in three valve styles; ball, poppet, and DC (connect under pressure) poppet. The DC version allows connection under system pressure on the coupler side and residual pressure (up to 3000 psi) on the nipple side.

* Not for use with 9200 Series Couplers

Features:

  • Decompression Poppet Style Hydraulic Tip
  • Globally interchanges with any other nipples or tips accepting ISO 5675
  • DC poppet style offers connect under pressure option
  • Poppet style valve prevents uncoupled leakage of hydraulic fluid
  • Hardened locking ball groove prevents Brinelling
  • Shielded valve and positive valve stop eliminates flow checking
  • Protective zinc plating with clear trivalent chromate finish

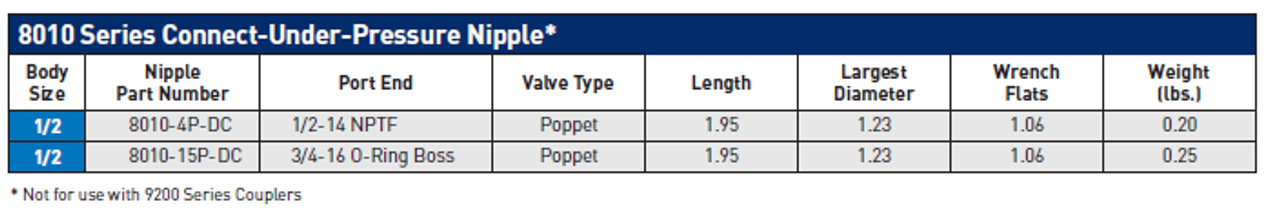

Specifications:

  • Body Size: 1/2"
  • Nipple Part Number: 8010-4P-DC
  • Port End: 1/2-14 NPTF
  • Valve Type: Poppet
  • Length: 1.95"
  • Largest Diameter: 1.23"
  • Wrench Flats: 1.06mm
  • Weight(lbs): 0.20
  • Maximum Operating Pressure: 3000 psi
  • Flow Rate: 12 gal/min
  • Seal Material: Nitrile
  • Valve Style: Connect under pressure poppet
  • Media: Hydraulic
  • Coupling Half: Nipple
  • Minimum Operating Temperature: -40 °F
  • Maximum Operating Temperature: 250 °F
  • Body Material: Steel
  • Thread Size: Female
  • Plating Type: Zinc with Clear Trivalent Chromate
  • Application: Hydraulics, Connect Under Pressure
  • Specifications Met: ISO 5675

Technical Characteristics:

  • Size: 1/2”
  • Material: Steel
  • Valve Options: Ball, Poppet, Pressure Relieving Poppet (DC)
  • Port Ends: Female NPTF, Female ORB, Female BSPP
  • Seal Options on poppet valves: Nitrile, EPR, Fluorocarbon, Neoprene

Applications:

  • Tractor attachments
  • Agricultural farm equipment
  • Hydraulic Loaders
  • Add-on hydraulic circuits
  • Hydraulic tools
  • Ag/mobile attachments

Markets:

  • Agriculture
  • Industrial
  • Construction

FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE.

  • This document and other information from Parker-Hannifin Corporation, its subsidiaries and authorized distributors provide product or system options for further investigation by users having technical expertise.
  • The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors.
  • To the extent that Parker or its subsidiaries or authorized distributors provide component or system options based upon data or specifications provided by the user, the user is responsible for determining that such data and specifications are suitable and sufficient for all applications and reasonably foreseeable uses of the components or systems.
