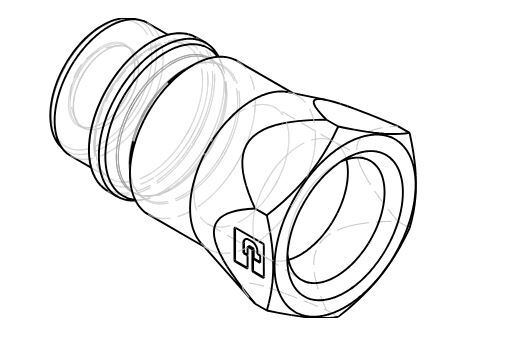

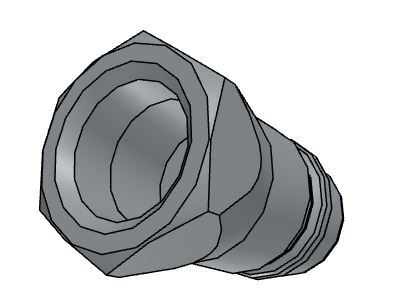

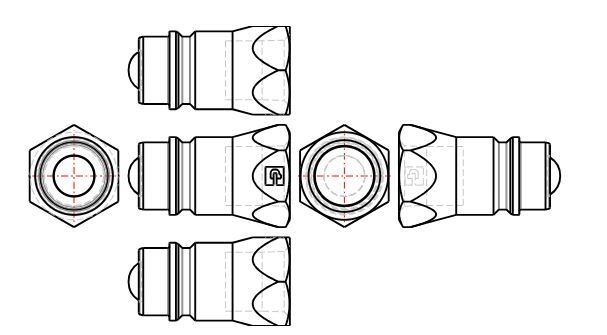

Pioneer 8010 Series Universal Nipple | 8010-4
The 8010 Series is the standard male tip of the agricultural industry, developed and proven by Pioneer in over 70 years of farm service. Tips are offered in three valve styles; ball, poppet, and DC (connect under pressure) poppet. The DC version allows connection under system pressure on the coupler side and residual pressure (up to 3000 psi) on the nipple side.
8010 Series Universal Male Tip. The standard male tip of the agricultural industry, Rugged, reliable ball valve and induction-hardened locking ball groove. Shielded valve plus valve stop eliminates flow checking when used with connect-under-pressure type couplers. Tapered hex design for easy identification. 8010 Series Nipples (hydraulic) 3000 psi, connect with 1/2 "" size 4000, 4200, 5000, 8200, 9200 Series Couplers and are interchangeable with other products accepting ISO 5675 universal tips. They are the universal standard male tip of the agricultural industry, commonly referred to as the Pioneer tip.
Features:
- Meets dimensional requirements of ISO 5675
- Poppet style valve prevents uncoupled leakage of hydraulic fluid
- Protective zinc plating with clear trivalent chromate finish
- These nipples will connect with all ½” body size 4000, 4200, 5000, 6600, 8200, 8450, and 9200 series couplers
- Has a positive sealing ball valve
- Globally interchanges with any other nipples or tips accepting ISO 5675
- Valve option styles include ball, poppet, and connect under pressure (DC) poppet
- Hardened locking ball groove resists wear for increased durability and protection from Brinelling
- Shielded valve and positive valve stop prevents flow checking for smooth performance
- DC valve version allows connection under system pressure on the coupler side and residual pressure (up to 3000 psi) on the nipple side
Technical Characteristics:
- Size: 1/2”
- Material: Steel
- Valve Options: Ball, Poppet, Pressure Relieving Poppet (DC)
- Port Ends: Female NPTF, Female ORB, Female BSPP
- Seal Options on poppet valves: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
- Agriculture
- Industrial
- Construction
Applications Include:
- Tractors
- Implements
- Agricultural attachments
- Hydraulic Loaders
- Add-on hydraulic circuits
- Hydraulic tools
- Ag/mobile attachments
Specifications:
- Product Description: Massey-Ferguson Male Tip
- Pioneer Part Number: 8010-4
- Port End: 1/2-14 NPTF
- Valve Type: Ball
- Length: 1.95"
- Largest Diameter: 1.23"
- Wrench Flats: 1.06mm
- Weight(lbs): 0.20
- Rated Pressure(psi): 3000
- Maximum Operating Pressure: 3000 psi
- Body Size: 1/2 inch
- Flow Rate: 12 gal/min
- Seal Material: n/a
- Media: Hydraulic
- Coupling Half: Nipple
- Minimum Operating Temperature: -40 °F
- Maximum Operating Temperature: 250 °F
- Body Material: Steel
- Thread Size: Female
- Plating Type: Zinc with Clear Trivalent Chromate
- Application: Hydraulics
- Specifications Met: ISO 5675
O.E.M. Part Number: 242678M91
