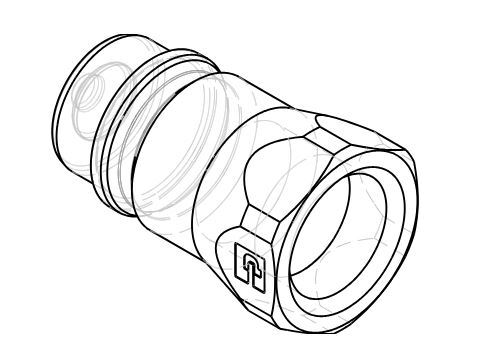

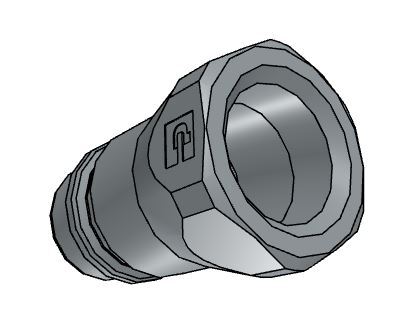

Pioneer 8010 Series Universal Nipple | 8010-4P
The 8010 Series is the standard male tip of the agricultural industry, developed and proven by Pioneer in over 70 years of farm service. These nipples will connect with all ½” body size 4000, 4200, 5000, 6600, 8200, 8450, and 9200 series couplers. Tips are offered in three valve styles; ball, poppet, and DC (connect under pressure) poppet. The DC version allows connection under system pressure on the coupler side and residual pressure (up to 3000 psi) on the nipple side.
Connects with Ford and similar couplers. Has positive sealing poppet valve.
Features:
- Meets dimensional requirements of ISO 5675
- DC poppet style offers connect under pressure option
- Poppet style valve prevents uncoupled leakage of hydraulic fluid
- Hardened locking ball groove prevents Brinelling
- Shielded valve and positive valve stop eliminates flow checking
- Protective zinc plating with clear trivalent chromate finish
Applications include:
- Tractors
- Implements
- Agricultural attachments
Male Tip. Connects with Ford and similar couplers. Has positive sealing poppet valve.

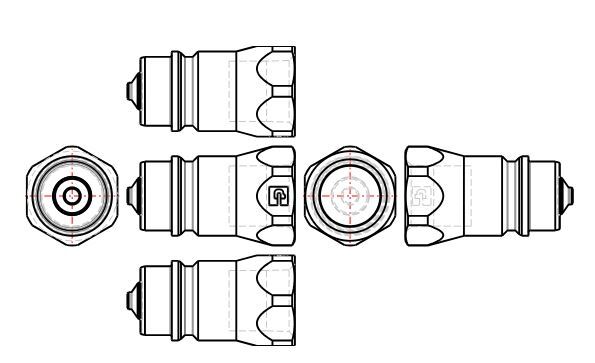

Specifications:
- Male Tip
- Product Description: Ford
- Body Size: 1/2"
- Pioneer Part Number: 8010-4P
- Port End: 1/2-14 NPTF
- Valve Type: Poppet
- Length: 1.95"
- Largest Diameter: 1.23"
- Wrench Flats: 1.06mm
- Weight(lbs): 0.20
- Rated Pressure(psi): 3000
O.E.M. Part Number: D-3NN-B964A
