Pioneer 9500 Series Lever Actuated Quick Coupling Kit | 9500-4


$270.95
SKU:
9500-4
Weight:
6.42 LBS
Shipping:
Calculated at Checkout
Accessories:
Kits

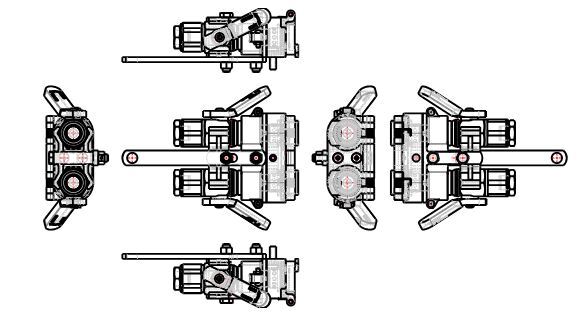

Pioneer 9500-4 Diagram:
Diagram
Pioneer 9500-4 Documentation:
Documentation
Pioneer 9500-4 Safety Instructions:
Safety Instructions
Pioneer 9500-4 Safety Guide:
Safety Guide

Pioneer 9500 Series Lever Actuated Quick Coupling Kit | 9500-4

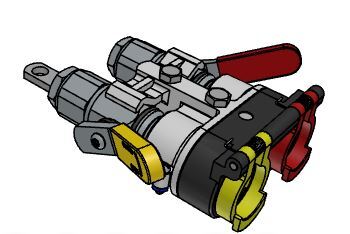

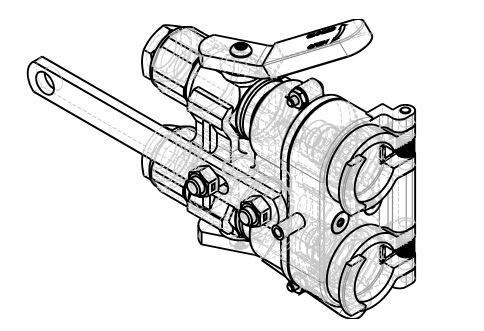

9500 Series Kits combines two color coded 9250 couplers with a 9006-4 clamp and dust protection. The dust covers automatically close when the male tip is removed and are color coordinated with the coupler lever handles to easily identify raise and lower lines. 9250 couplers accept 8010 (ISO 5675) tips and are NOT included with the kit.

Pioneer 9500 Series agricultural clamp kits include two 9250 premium connect under pressure couplers, clamp and dust protection. Kits are available partially assembled or preassembled and ready for use.

Parker's 9200 Series are double shut-off, lever activated, connect under pressure quick couplings that connect with 8010 Series Nipples (IS0 5675, Pioneer universal male tips). The coupler allows zero pressure connection and disconnection while either or both the coupler or nipple are under pressure. A lever operated cam locks both coupler and nipple valves in the open or closed position. "Closed" the flow is shut off at the coupler, allowing easy connect and disconnect. Valves in the "Open" position are locked in place, preventing flow checking and are unaffected by hydraulic surges. Valves will automatically close if the coupling is accidentally disconnected or in the case of a breakaway.
Couplers and dust covers are color coded to easily identify raise and lower lines.

For connect and disconnect at zero pressure, even with pressurized lines.

Features:

  • Zero Pressure Connection Coupler allows you to always connect or disconnect at ''zero pressure'' even with pressurized lines
  • Positively lock the valves in the open position
  • Accepts any male tip that meets the industry standard (Pioneer 8010)
  • Color-coded levers to identity raise and tower lines
  • Minimizes spillage
  • Eliminates spraying
  • Easily connect or disconnect with one hand (clamp mounted)
  • No back flow-checking
  • 1/2'' NPTF Thread Connection
  • Clamp has steel mounting bar with heavy duty die cast yoke to securely hold the couplers
  • Dust protection housing has color coded covers that automatically close when couplers are disconnected, to keep dirt from easily entering the coupler socket
  • Lever locks valves in open position to be unaffected by pressure surges and prevent flow checking
  • Lever locks valves in closed position to enable easy connection and disconnection while lines are under pressure
  • Right and left-handed lever orientation with color coded grips help to easily identify raise and lower lines
  • Coupling will disconnect and valves will automatically close in the case of a breakaway
  • Globally connects with Pioneer universal male tips (nipples) complying to ISO 5675 (not included in Kit)

Kit contents:

  • (1) 9250 Coupler (right hand orientation)
  • (1) 9250 Coupler (left hand orientation)
  • (1) 9006-4 Clamp Assembly
  • (1) 9507-4-1H Automatic Dust Cover Assembly

Specifications:

  • Body Size: 1/2"
  • Part Number: 9500-4
  • Port End: 1/2-14 NPTF
  • Description: Kit
  • Rated Pressure(psi): 3000
  • Sleeve Diameter: 1.50
  • Flats:1.13
  • Clamp: 9006-4
  • Dust Cover: 9507-4-1H
  • Coupling Half: Coupler
  • Thread Size: Female
  • Sleeve Type: Push-pull Connect and Disconnect
  • Kit Type: Unassembled
  • Connection Thread Size (inch): 1/2 - 14 NPTF

Markets:

  • Agriculture
  • Mobile Farm Equipment

Applications:

  • Tractors and mobile equipment attachments
  • Agricultural attachments requiring breakaway
  • NOT recommended for use with gaseous or compressible media
