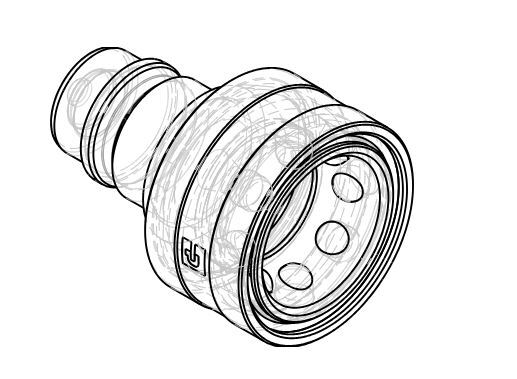

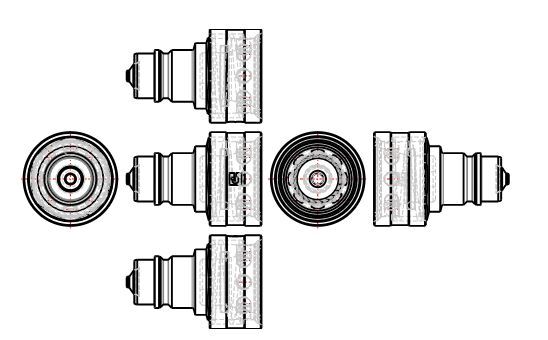

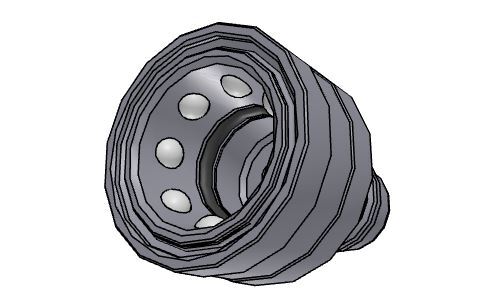

Pioneer Agricultural Quick Coupling Adapter | 4065-4

Pioneer Agricultural Quick Coupling Adapters provide the most reliable and exacting interchange in the industry. These Adapters allow specific male tip styles to connect with a different female coupler style. For example: To connect a farm implement that has a J I Case tip to a tractor with a Pioneer coupler socket, an adapter must be used to convert the two connector styles.

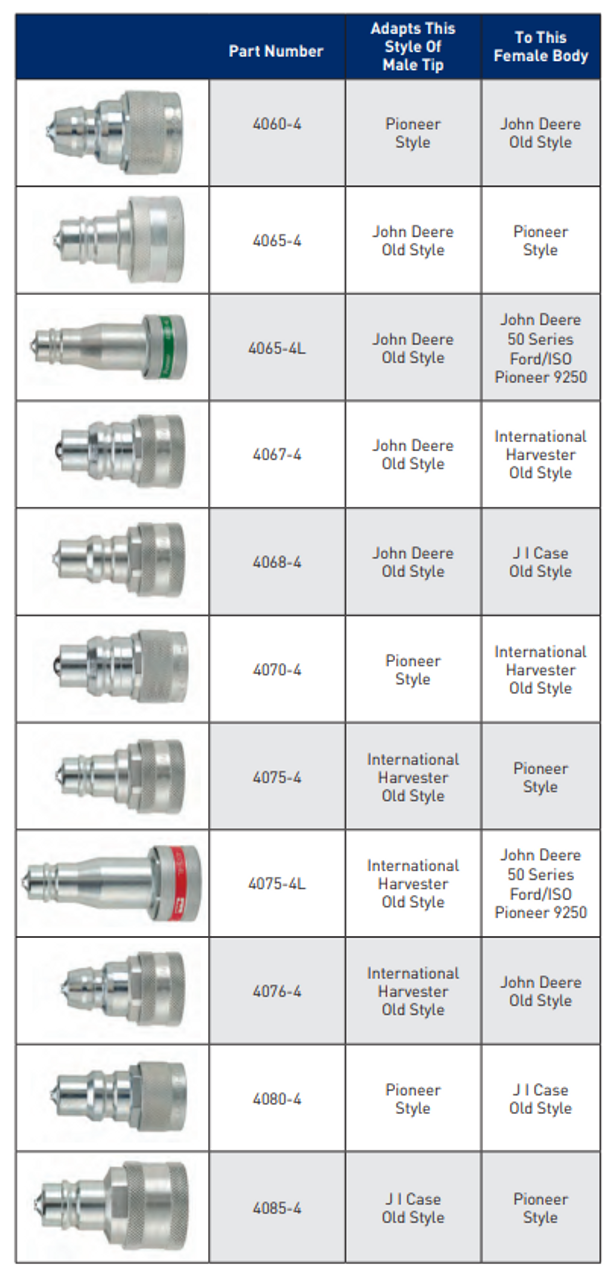

Pioneer Adapters offer a complete range of interchange styles to convert quick coupling connections without replacing the existing male tip on the implement. Interchange profiles include Pioneer, John Deere, International Harvester, J I Case, and Ford/ISO.

Features:

Male is ISO---Female is old JD
Wide range of connection styles to convert implement male tips without replacing them
Connection styles include Pioneer and major farm equipment brand profiles
Hardened locking ball groove resists wear for increased durability and protection from Brinelling
Positive valve stop prevents flow checking for smooth performance

Specifications:

Body Size: 1/2 inch
Connection 2 Style: John Deere (old style) female socket
Function: Adapt a John Deere (old style) male tip to Pioneer style (ISO 5675)
Connection 1 Style: Pioneer (ISO 5675) male tip

Technical Characteristics:

Size: 1/2”
Material: Steel
Conversion Styles: Pioneer, John Deere, International Harvester, J I Case, and Ford/ISO

Markets:

Agriculture

Applications:

Tractor attachments / implements
Agricultural farm equipment
Hydraulic Loaders
Ag/mobile attachments

How To Connect Using An Adapter
Step 1 Relieve trapped pressure in the implement line.
Step 2 Connect male tip on the implement line into the adapter.
Step 3 Connect the Adapter into the female body.
To Disconnect: Reverse the above procedure: first disengage adapter from female body, then male tip from adapter.

*Pioneer Couplers include: 4000, 4200, 6600, 8200, 8450, 9200, and 5000 Series
