Pioneer Agricultural Quick Coupling Adapter | 4065-4L
Pioneer adapters provide the most reliable and exacting interchange in the industry. Pioneer has been “The Farmer’s Choice” for more than 70 years, and it is the world leader in quick coupling products for the agricultural industry. These products are manufactured in state-of-the-art manufacturing plants using the latest technologies to provide you with products of the highest quality and durability. Pioneer offers the widest range of quick couplings on the market, and has a product for nearly every agricultural application.
Pioneer Agricultural Quick Coupling Adapters provide the most reliable and exacting interchange in the industry. These Adapters allow specific male tip styles to connect with a different female coupler style. For example: To connect a farm implement that has a J I Case tip to a tractor with a Pioneer coupler socket, an adapter must be used to convert the two connector styles.
Pioneer Adapters offer a complete range of interchange styles to convert quick coupling connections without replacing the existing male tip on the implement. Interchange profiles include Pioneer, John Deere, International Harvester, J I Case, and Ford/ISO.

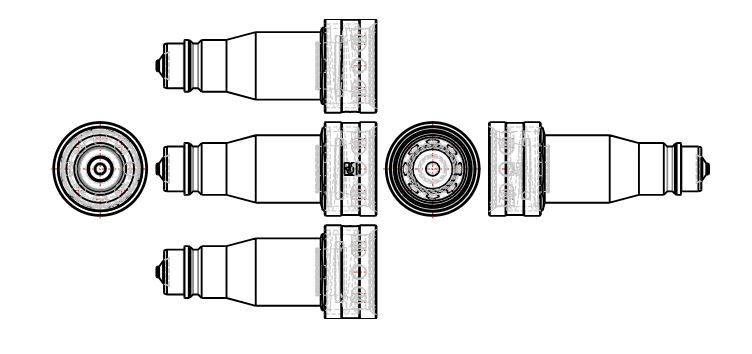

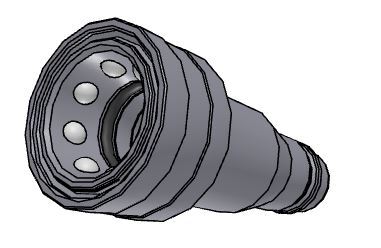

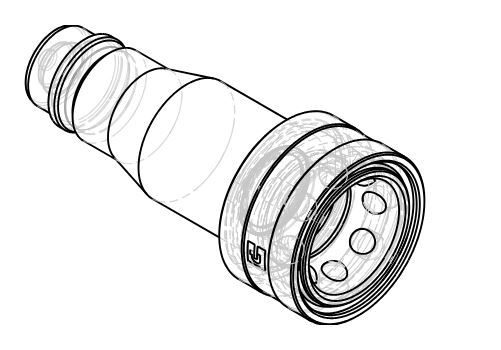

Adapts: John Deere Old Style male tip to John Deere 50 Series, Ford/ISO, & Pioneer 9250 Style female body.
Feature:
- Male is new style JD ISO---Female is old style JD
- Wide range of connection styles to convert implement male tips without replacing them
- Connection styles include Pioneer and major farm equipment brand profiles
- Hardened locking ball groove resists wear for increased durability and protection from Brinelling
- Positive valve stop prevents flow checking for smooth performance
Specifications:
- Body Size: 1/2 inch
- Brand: Pioneer
- Connection 1 Style: Extended length (ISO 5675) Pioneer male tip
- Connection 2 Style: John Deere (old style) female socket
- Function: Adapt a John Deere (old style) male tip to extended length (ISO 5675) Pioneer
Technical Characteristics:
- Size: 1/2”
- Material: Steel
- Conversion Styles: Pioneer, John Deere, International Harvester, J I Case, and Ford/ISO
Markets:
- Agriculture
Applications:
- Tractor attachments / implements
- Agricultural farm equipment
- Hydraulic Loaders
- Ag/mobile attachments
How To Connect Using An Adapter
Step 1 Relieve trapped pressure in the implement line.
Step 2 Connect male tip on the implement line into the adapter.
Step 3 Connect the Adapter into the female body.
To Disconnect: Reverse the above procedure: first disengage adapter from female body, then male tip from adapter.
*Pioneer Couplers include: 4000, 4200, 6600, 8200, 8450, 9200, and 5000 Series
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE.
- This document and other information from Parker-Hannifin Corporation, its subsidiaries and authorized distributors provide product or system options for further investigation by users having technical expertise.
- The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors.
- To the extent that Parker or its subsidiaries or authorized distributors provide component or system options based upon data or specifications provided by the user, the user is responsible for determining that such data and specifications are suitable and sufficient for all applications and reasonably foreseeable uses of the components or systems.
