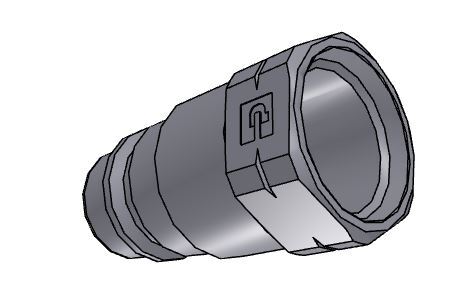

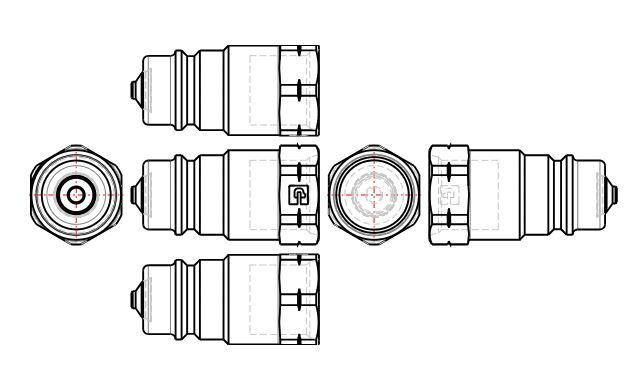

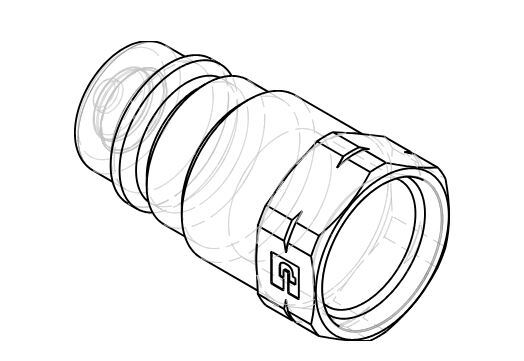

Pioneer Quick Coupling | 5077-16
Pioneer has been “The Farmer’s Choice” for more than 70 years, and it is the world leader in quick coupling products for the agricultural industry. These products are manufactured in state-of-the-art manufacturing plants using the latest technologies to provide you with products of the highest quality and durability. Pioneer offers the widest range of quick couplings on the market and has a product for nearly every agricultural application.
Pioneer agricultural products provide the most reliable and exacting aftermarket OEM interchanges in the industry. Couplers and nipples connect with specific OEM brand quick coupling styles. Agricultural male tip and female body interchange styles include: Allis Chalmers, J I Case, Ford, John Deere, International Harvester (CNH), and Massey - Ferguson.
Features:
- Male Tip. Also fits International Harvester 395150-R1 (See 5077-4) but has 7/8 -14 O-ring boss thread. Notched hex for easy identification.
- Wide range of coupling styles to interchange with major farm equipment brand implement male tips and female coupler bodies
- Male tips have hardened locking ball grooves to resist wear and provide protection from Brinelling
- Positive valve stop prevents flow checking for smooth performance
Specifications:
- Product Description: I-H Male Tip
- Port End: 7/8-14 ORB
- Rated Pressure(psi): 3000
- Body Size: 1/2 inch
- Maximum Operating Pressure: 3000 psi
- Thread Size: Female ORB
- Connection Thread Size: 7/8"-14 UNF inch
- Coupling Half: Nipple - Male Tip
- Function: Connects with International Harvester 395150-R1 (old style) couplers
Technical Characteristics:
- Size: 1/2”
- Material: Steel
- Interchange Styles: Allis Chalmers, J I Case, Ford, John Deere, International Harvester (CNH), and Massey - Ferguson
Markets:
- Agriculture
- Aftermarket replacement, maintenance and repair
Applications:
- Tractor attachments / implements
- Agricultural farm equipment
- Hydraulic Loaders
- Ag/mobile attachments
O.E.M. Part Number: 395149R1
