Continental NH3 Tank Combination Valve 1-1/4" MPT X 1-1/4" FPT ACME | B-1206-F

5.00 LBS
Calculated at Checkout

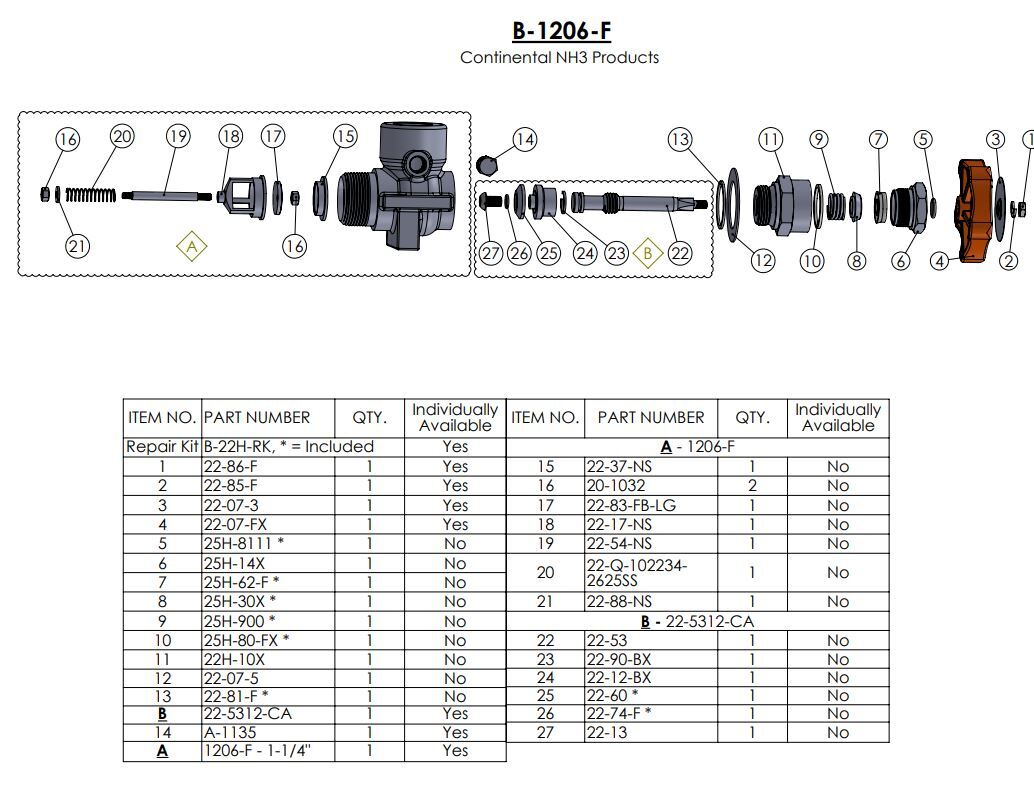

Continental B-1206-F Product Manual:
B-1206-F Product Manual
Product Type:
NH3 Nurse Tank Valves
1-1/4" FPT
1-1/4" FPT

Continental NH3 Tank Combination Valve 1-1/4" MPT X 1-1/4" FPT | B-1206-F (Formally A-1206-F)

Withdrawal valves are available in a wide variety of connections, from 1-1/4" and 1-1/2" MPT tank connections with 1", 1-1/4" or 1-1/2" FPT outlets as well as 2-1/4" ACME male outlets. A 1/4" FPT outlet port is also provided for the installation of a desired accessory. This particular valve can be used for vapor, filler or liquid withdrawal.


  • Tank Connection Size: 1- 1/4" MPT
  • Outlet Size: 1-1/4" FPT
  • Excess Flow Check Rating: 42 GPM
  • Side Port & Feature: A-400 Relief
  • Stainless steel stem - precision ground and polished.
  • Spring loaded "teflon" stem packing - positive seal with pressure tested at 400 psi.
  • Optional double coated, zinc plated and painted for extra protection.
  • Excess flow check assembly of all valves individually inspected and checked after assembly to assure accurate and dependable operation.
  • Spring loaded packing for a free spinning hand wheel.
