Continental NH3 Tank Combination Valve 1-1/4" MPT X 1-3/4" Outlet | B-1201


$182.25
SKU:
B-1201
Weight:
5.00 LBS
Shipping:
Calculated at Checkout
Product Manual:
Download PDF
Product Type:
Angle Valves
Product Type:
NH3 Nurse Tank Valves
Size:
1-1/4" MPT
Size:
1-3/4" ACME

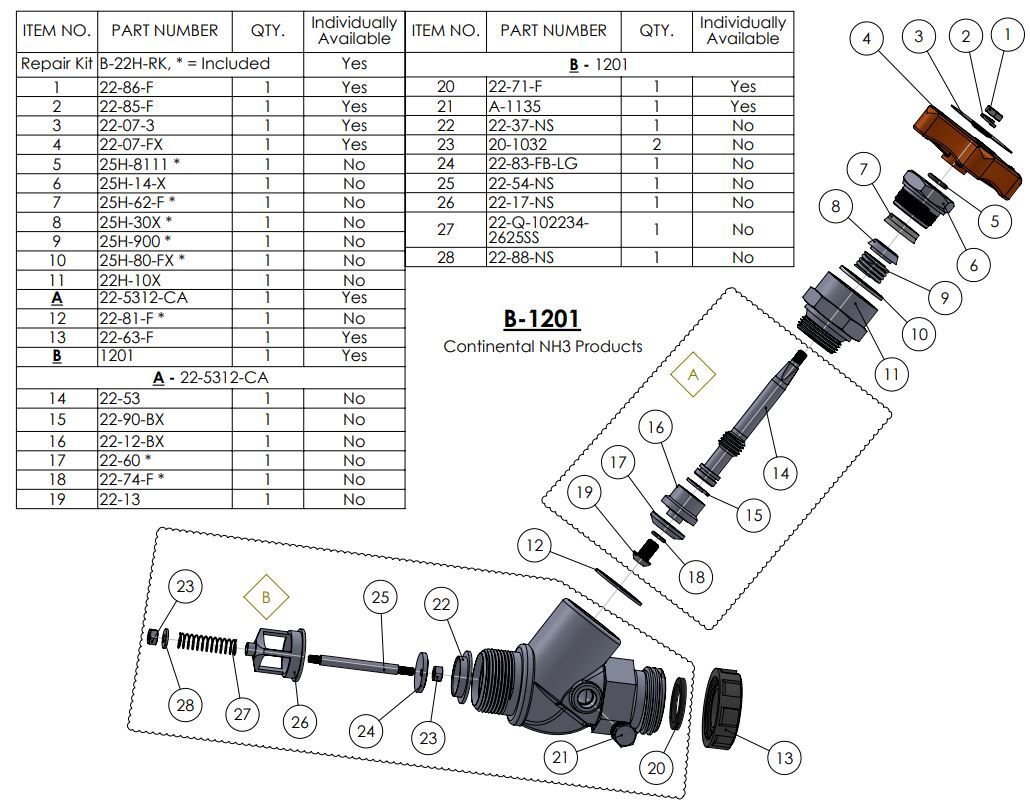

Continental NH3 Tank Combination Valve 1-1/4" MPT X 1-3/4" Outlet | B-1201 (Formally A-1201)

Catalog No. B-1201 (formally A-1201) is a high flow, manual shutoff valve for applicator and nurse tanks. It is designed for use as a filler, liquid or vapor withdrawal valve. The rugged ductile iron body is an assurance of durability and a long service life. The built-in excess flow check assembly provides maximum safety in the event of an accidental hose break

Features:

  • Tank Connection Size: 1- 1/4" MPT
  • Outlet Size: 1-3/4"
  • Excess Flow Check Closing GPM/NH3: 42 GPM
  • Stainless steel stem - precision ground and polished.
  • Spring loaded "teflon" stem packing - positive seal with pressure tested at 400 psi.
  • Optional double coated, zinc plated and painted for extra protection.
  • Excess flow check assembly of all valves individually inspected and checked after assembly to assure accurate and dependable operation.
  • Spring loaded packing for a free spinning hand wheel.
