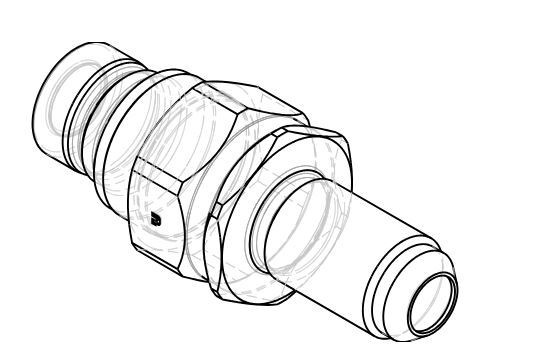

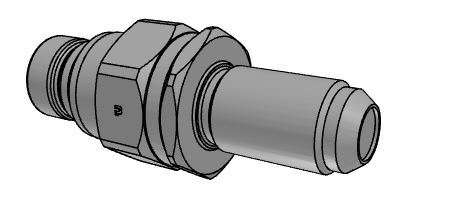

Pioneer FEM Series Non-Spill Nipple - Bulkhead | FEM-502-10BMF
FEM Series couplings meet or exceed ISO 16028 design and performance requirements. The flush valves eliminate spillage and air inclusion when connecting and disconnecting. Coupler and nipple bodies have a modular design with increased flexibility for end port options.
FEM Series Nipples (hydraulic) up to 5000 psi, connect with FEM Series Couplers. All FEM Series parts meet or exceed design and performance requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards.
Parker's FEM Series quick connect fittings are double shut off, non-spill, flat face quick couplings designed to minimize spillage and air inclusion when connecting or disconnecting and are interchangeable with other products complying with HTMA - ISO 16028. FEM quick couplers and nipples are available in a range of sizes as well as male and female fitting ends to be versatile for use in applications with pressures up to 5000 psi.
Features:
- Flush, non-spill valving
- Global interchangeability with other ISO 16028 compliant couplings
- Hardened steel sleeves and nipple bodies
- Blow-out resistant seal
- Protective zinc nickel plating with clear trivalent chromate finish

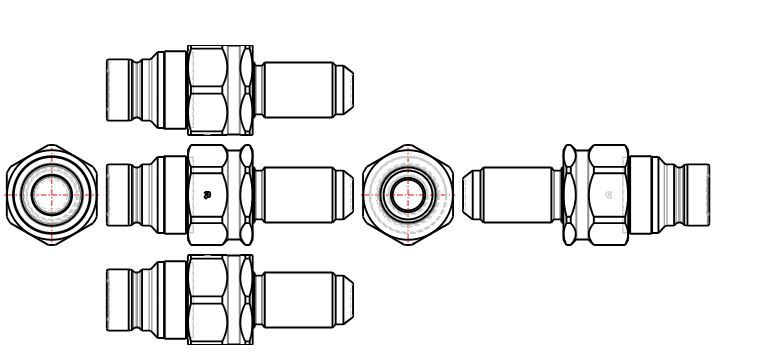

Specifications:
- Body Size: 1/2"
- Nipple Part Number: FEM-502-10BMF
- Port End: 7/8-14 UNF
- Length: 3.85"
- Coupled Length (when connected to corresponding nipple): 7.24"
- Largest Diameter: 1.38"
- Wrench Flats: 31.75mm
- Weight(lbs): 0.84
- Specifications Met: ISO 16028, HTMA
- Coupling Half: Male Nipple
- Maximum Operating Pressure: 5000
- Maximum Operating Temperature: 250 °F
- Valve Type: Non-spill
- Application: Hydraulics, non-spill
- Minimum Operating Temperature: -40 °F
- Connection Type: Male bulkhead flare
- Product Type: Push to Connect
- Flow Rate: 12 gal/min
- Body Material: Steel
- Plating Type: Zinc Nickel
- Seal Material: Polyurethane/Nitrile
Technical Characteristics:

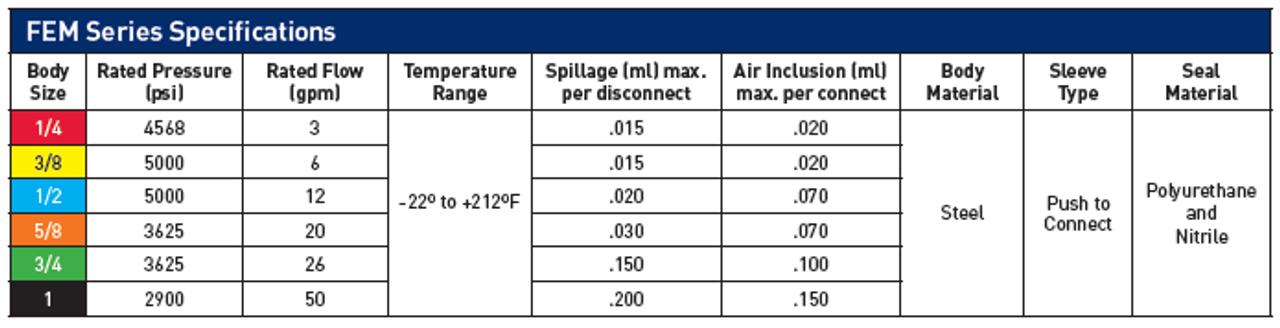

- FEM Sizes: 1/4” – 1”
- Materials: Steel
- Port Ends: Female NPSF, Female ORB, Male Bulkhead Flare, Male Bulkhead Face Seal
- Seal Options: Nitrile/Polyurethane, EPR, Fluorocarbon
Markets:
- Industrial
- Construction
- Utility
- Agriculture
Applications include:
- Skid loader attachments
- Hydraulic tools
- Construction equipment attachments
- Industrial hydraulic lines
- Agricultural implements
- Coolant fill and drain lines - Contact QCD for a brass, FEM style drain port nipple that is recommended for use by the Technology and Maintenance Council of the American Trucking Association, TMC Recommended Practice 353
Materials of Construction:
- Body: Steel
- Finish: Chromium-6 Free plating
- Valve: Flush face valving
- Seal: Polyurethane or Nitrite; size dependent
