Pioneer FEM Series Non-Spill Nipple | FEM-502-8FP
FEM Series Nipples (hydraulic) up to 5000 psi, connect with FEM Series Couplers. All FEM Series parts meet or exceed design and performance requirements of Hydraulic Tool Manufacturer's Association (HTMA - ISO 16028) standards.
Parker's FEM Series quick connect fittings are double shut off, non-spill, flat face quick couplings designed to minimize spillage and air inclusion when connecting or disconnecting and are interchangeable with other products complying with HTMA - ISO 16028. FEM quick couplers and nipples are available in a range of sizes as well as male and female fitting ends to be versatile for use in applications with pressures up to 5000 psi.
Features:
- Flush, non-spill valving. Flat face valves minimize fluid loss when disconnecting, to reduce environmental contamination and avoid safety hazards caused by spillage
- Global interchangeability with other ISO 16028 compliant couplings
- Hardened nipple bodies
- Sleeve-Lok design standard
- Protective zinc nickel plating
- Flat face valves minimize the amount of air that can enter the system when connecting fluid lines, thus preventing accelerated wear of the system's components.
- Male bulkhead fitting ends for panel or plate mounting options

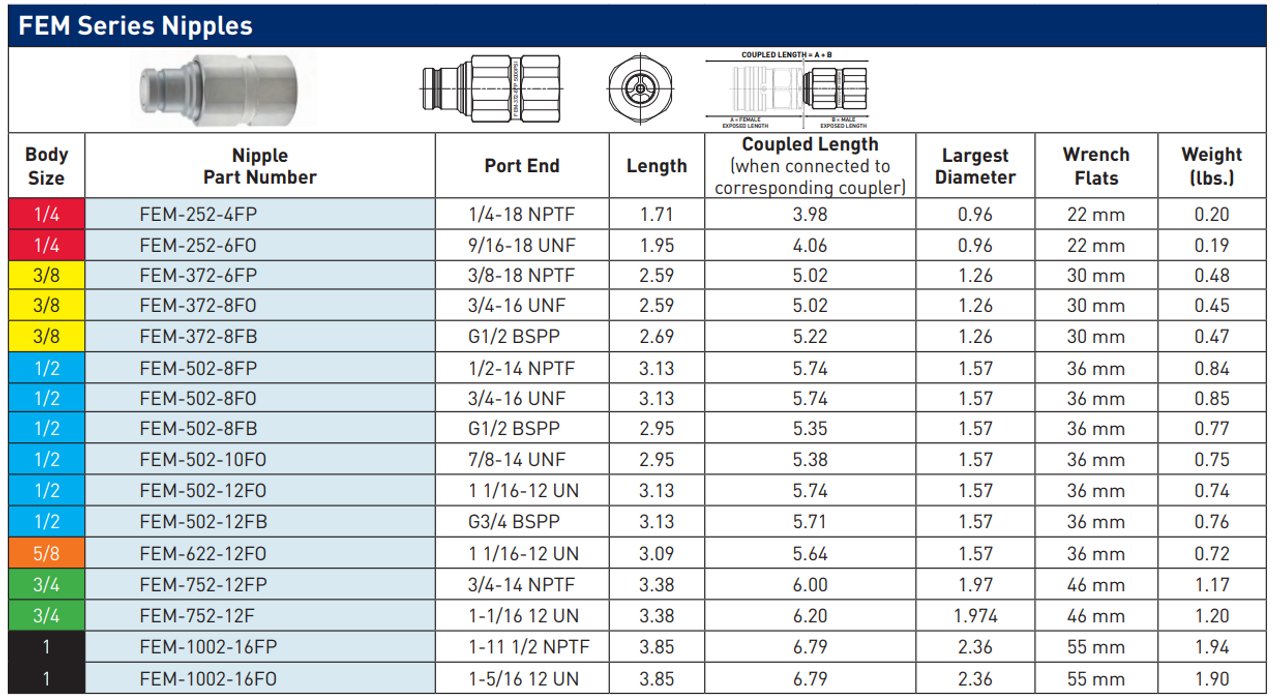

Specifications:
- Body Size: 1/2"
- Nipple Part Number: FEM-502-8FP
- Port End: 1/2-14 NPTF
- Length: 3.13"
- Coupled Length (when connected to corresponding coupler): 5.74"
- Largest Diameter: 1.57"
- Wrench Flats: 36mm
- Weight(lbs): 0.84
- Coupling Half: Male Nipple
- Specifications Met: ISO 16028, ISO 16028, HTMA
- Maximum Operating Pressure: 5000
- Maximum Operating Temperature: 250 °F, 110 °C
- Valve Type: Non-spill
- Application: Hydraulics, n/a, non-spill
- Minimum Operating Temperature: -40 °F, -40 °C
- Connection Type: Female NPTF
- Product Type: Push to Connect, Quick coupling
- Flow Rate: 12 gal/min, 55 L/min
- Body Material: Steel
- Plating Type: Zinc Nickel, Zink Nickel
- Seal Material: Polyurethane/Nitrile, NBR
Materials of Construction:
- Body: Steel
- Finish: 1/4”, 5/8” to 1” Zinc with clear trivalent chromate 3/8” & 1/2” Zinc Nickel
- Valve: Flush face valving
- Seal: Polyurethane and Nitrile

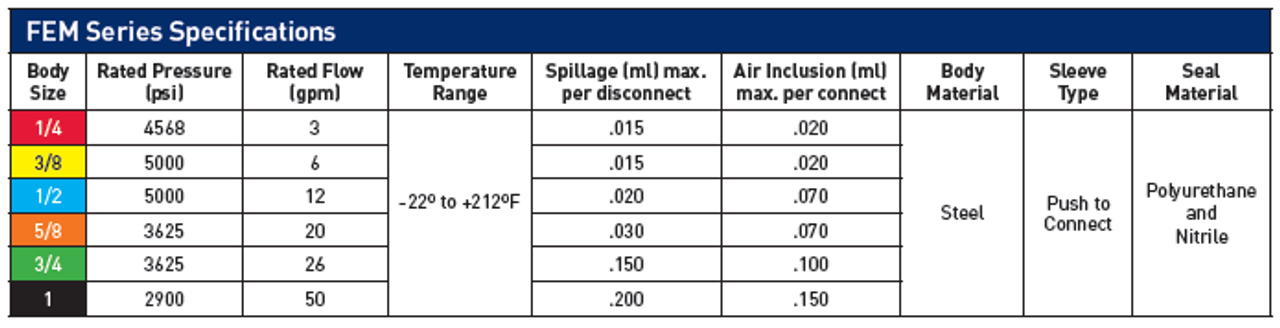

Technical Characteristics:
- FEM Sizes: 1/4” – 1”
- Materials: Steel
- Port Ends: Female NPSF, Female ORB, Male Bulkhead Flare, Male Bulkhead Face Seal
Markets:
- Industrial
- Construction
- Utility
- Agriculture
Applications:
- Skid loader attachments
- Hydraulic tools
- Construction equipment attachments
- Industrial hydraulic lines
- Agricultural implements
- Coolant fill and drain lines - Contact QCD for a brass, FEM style drain port nipple that is recommended for use by the Technology and Maintenance Council of the American Trucking Association, TMC Recommended Practice 353
