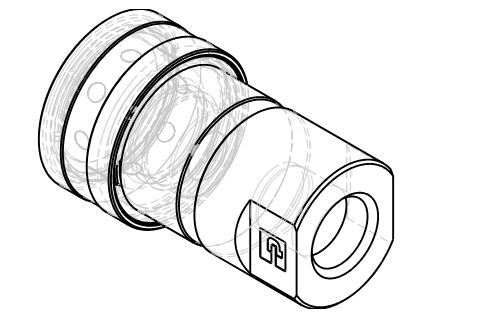

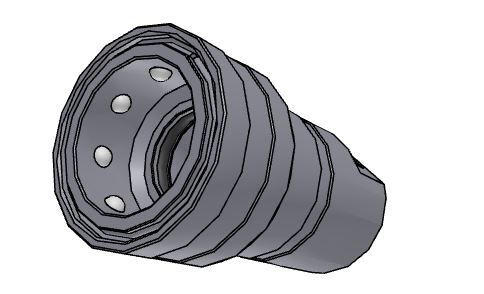

Pioneer Female Body Coupler | 4057-4
Pioneer has been “The Farmer’s Choice” for more than 70 years, and it is the world leader in quick coupling products for the agricultural industry.
These products are manufactured in state-of-the-art manufacturing plants using the latest technologies to provide you with products of the highest quality and durability. Pioneer offers the widest range of quick couplings on the market and has a product for nearly every agricultural application.
Pioneer agricultural products provide the most reliable and exacting aftermarket OEM interchanges in the industry. Couplers and nipples connect with specific OEM brand quick coupling styles. Agricultural male tip and female body interchange styles include: Allis Chalmers, J I Case, Ford, John Deere, International Harvester (CNH), and Massey - Ferguson.
Features:
- IH Female Body Coupler
- Connects with I-H 544787R91 and Pioneer 5070-4 male tips
- Interchange for I-H 544788R1
- Has single-acting sleeve; trapped pressure must be released to make connection
- Precision ball-check valving
- Zinc plated
- For use with international male tip
- Male tips have hardened locking ball grooves to resist wear and provide protection from Brinelling
- Positive valve stop prevents flow checking for smooth performance
Specifications:
- Body Size: 1/2 inch
- Coupling Half: Coupler - Female Socket
- Maximum Operating Pressure: 3000 psi
- Thread Size: Female NPTF
- Connection Thread Size: 1/2"-14 NPTF inch
- Brand: Pioneer
- Competitor Part Number: International Harvester coupler 544788R1
- Function: Connects with International Harvester 544787R1 and Pioneer 5070-4 male tips
Technical Characteristics:
- Size: 1/2”
- Material: Steel
- Interchange Styles: Allis Chalmers, J I Case, Ford, John Deere, International Harvester (CNH), and Massey - Ferguson
Markets:
- Agriculture
- Aftermarket replacement, maintenance and repair
Applications:
- Tractor attachments / implements
- Agricultural farm equipment
- Hydraulic Loaders
- Ag/mobile attachments
O.E.M. Part Number: 544788R1
